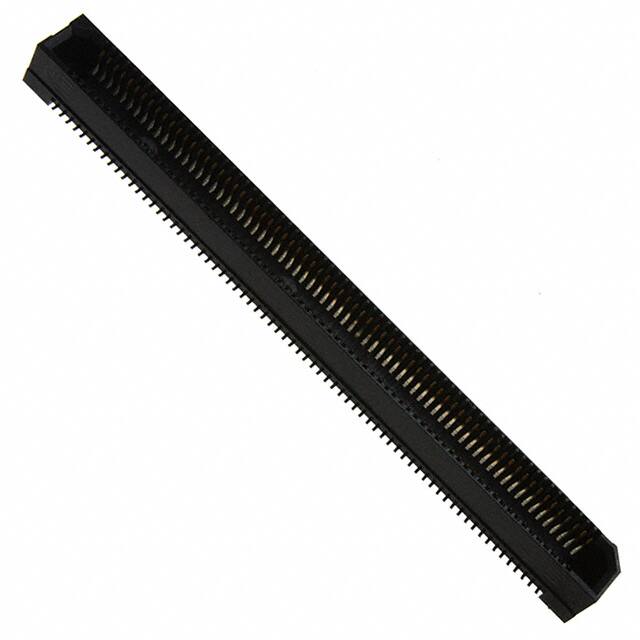

ERF8-070-05.0-S-DV-L-TR

Specifications

Reference Standard

UL

Mil Conformance

NO

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Height Above Board

0.210 5.33mm

Number Of Conductors

ONE

Additional Feature

EDGE RATE CONTACT, E.L.P., LATCHED

Terminal

Solder

Number Of Pcb Rows

2

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Özellikler

Board Guide, Latches

Radyasyon Dayanımı

No

Contact Finish Thickness

30.0μin 0.76μm

Contact Finish

Gold

Polarization Key

POLARIZED HOUSING

Connector Type

Socket, Outer Shroud Contacts

Gender

Female

RoHS Durumu

ROHS3 Compliant

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulator Color

BLACK

Plating Thickness

30μin

Ambalaj

Tape & Reel (TR)

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Fabrika Tedarik Süresi

3 Weeks

Reliability

COMMERCIAL

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

Edge Rate™ ERF8

Pozisyon Sayısı

140

Total Number Of Contacts

140

Din Conformance

NO

Pitch

0.031 0.80mm

Mixed Contacts

NO

Operating Temperature Min

-55°C

JESD-609 Kodu

e3

Mounting Option1

LOCKING

Stack Height Mating

7mm 10mm 13mm 14mm 20mm

Pcb Contact Pattern

RECTANGULAR

Pcb Contact Row Spacing

4.4958 mm
