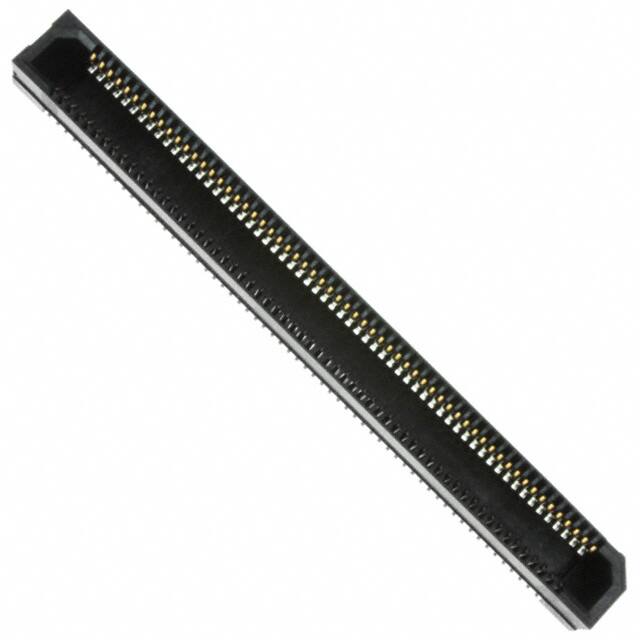

ERF8-060-05.0-L-DV-L-TR

Specifications

Stack Height Mating

7mm 10mm 13mm 14mm 20mm

Pcb Contact Row Spacing

4.4958 mm

Parça Durumu

Active

Total Number Of Contacts

120

Uzunluk

55.5mm

Pitch

0.031 0.80mm

Mixed Contacts

NO

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

3 Weeks

Connector Type

Socket, Outer Shroud Contacts

RoHS Durumu

ROHS3 Compliant

Plating Thickness

10μin

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness

10.0μin 0.25μm

Height Above Board

0.210 5.33mm

Number Of Conductors

ONE

Terminal

Solder

Mil Conformance

NO

Mounting Option1

LOCKING

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Montaj Tipi

Surface Mount

Filter Feature

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

Edge Rate™ ERF8

Pozisyon Sayısı

120

Din Conformance

NO

Housing Color

Black

Housing Material

Polymer

Max Voltage Rating Ac

200V

Max Current Rating

2.1A

Min. Çalışma Sıcaklığı

-55°C

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Depth

5.6mm

ECCN Kodu

EAR99

Contact Finish

Gold

Polarization Key

POLARIZED HOUSING

Orientation

Straight

Contact Materials

Copper
