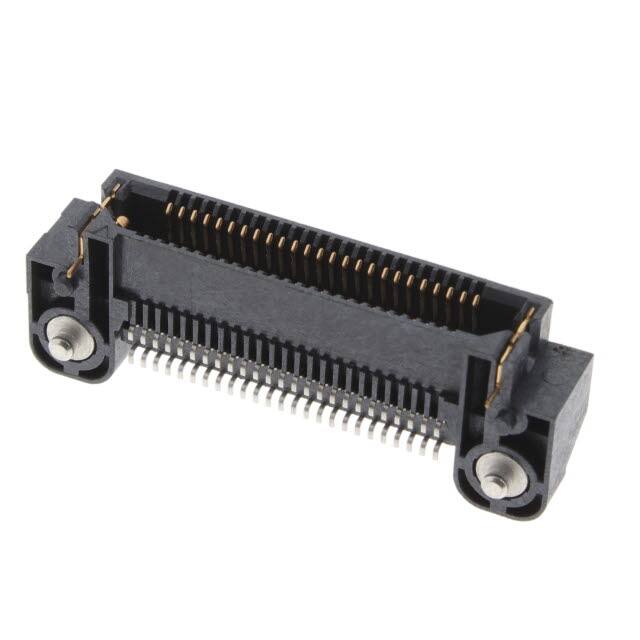

ERF8-025-01-L-D-RA-L-TR

Specifications

Yayın Yılı

2015

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

4 Weeks

Contact Resistance

15mOhm

Parça Durumu

Active

Mixed Contacts

NO

Pitch

0.031 0.80mm

Total Number Of Contacts

50

Uzunluk

33mm

Number Of Conductors

ONE

Terminal

Solder

Height Above Board

0.246 6.25mm

Mil Conformance

NO

Plating Thickness

10μin

Ambalaj

Tape & Reel (TR)

RoHS Durumu

ROHS3 Compliant

Connector Type

Socket, Outer Shroud Contacts

Board Mounting Option

PEG

Contact Finish Thickness

10.0μin 0.25μm

Min. Çalışma Sıcaklığı

-55°C

Max Current Rating

1.4A

ECCN Kodu

EAR99

Depth

11.35mm

Sıra Sayısı

2

Contact Pattern

RECTANGULAR

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Pcb Contact Pattern

RECTANGULAR

Dielectric Withstanding Voltage

900VAC V

Mounting Option1

LOCKING

JESD-609 Kodu

e3

Housing Material

Polymer

Max Voltage Rating Ac

235V

Housing Color

Black

Din Conformance

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pozisyon Sayısı

50

Seri

Edge Rate™ ERF8

Maks. Çalışma Sıcaklığı

125°C

Additional Feature

EDGE RATE CONTACT, LATCHED
