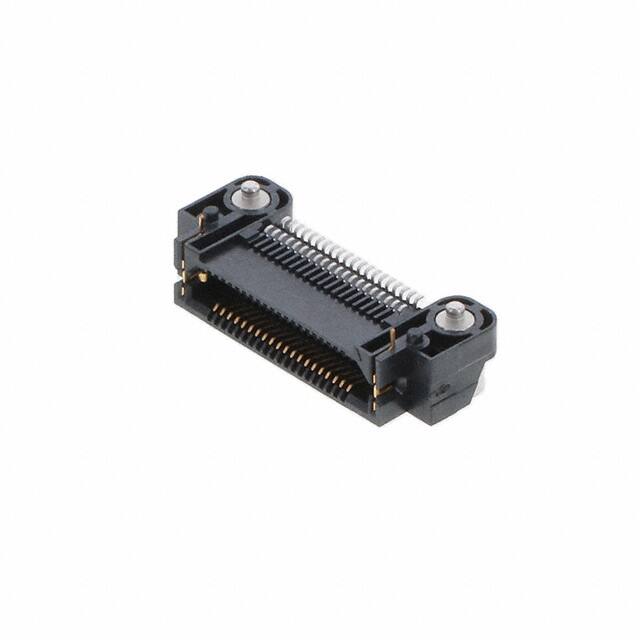

ERF8-020-01-L-D-RA-L-TR

Specifications

Ambalaj

Tape & Reel (TR)

Insulator Color

BLACK

Plating Thickness

10μin

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

RoHS Durumu

ROHS3 Compliant

Contact Materials

BERYLLIUM COPPER

Connector Type

Socket, Outer Shroud Contacts

Polarization Key

POLARIZED HOUSING

Rated Current Signal

1.4A

Contact Finish

Gold

Contact Finish Thickness

10.0μin 0.25μm

Özellikler

Board Guide, Latches, Mounting Flange

Insulation Materials

LIQUID CRYSTAL POLYMER (LCP)

Additional Feature

EDGE RATE CONTACT, LATCHED

Terminal

Solder

Number Of Conductors

ONE

Height Above Board

0.246 6.25mm

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Mil Conformance

NO

Reference Standard

UL

Filter Feature

NO

Parça Durumu

Active

Montaj Tipi

Surface Mount

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Dielectric Withstanding Voltage

900VAC V

Insulation Resistance

50000000000Ohm

Mixed Contacts

NO

Operating Temperature Min

-55°C

Pitch

0.031 0.80mm

Din Conformance

NO

Total Number Of Contacts

40

Pozisyon Sayısı

40

Seri

Edge Rate™ ERF8

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Montaj

Surface Mount

Yayın Yılı

2013
