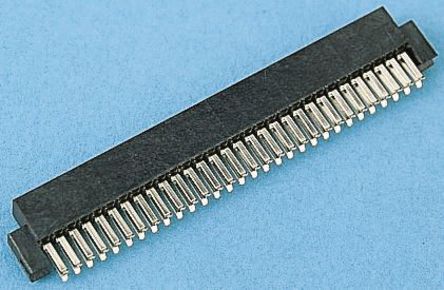

EMF-130-01-L-D

Specifications

Reliability

COMMERCIAL

Total Number Of Contacts

60

Contact Materials

Copper

Nem Hassasiyeti (MSL)

Not Applicable

Uzunluk

41.86mm

Pcb Contact Pattern

RECTANGULAR

Genişlik

3.05mm

Bodyshell Style

SOCKET

Filter Feature

NO

Maks. Çalışma Sıcaklığı

125°C

Plating Thickness

10μin

Parça Durumu

Active

Connector Type

Connector

Insertion Forcemax

.834 N

Din Conformance

NO

Contact Resistance

10mOhm

Iec Conformance

NO

Pitch

1.27mm

Seri

Flexcard™ EMF

Number Of Pcb Rows

2

Depth

7.69mm

Orientation

Straight

Mating Contact Row Spacing

0.05 inch

Ul Flammability Code

94V-0

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Mixed Contacts

NO

Fabrika Tedarik Süresi

3 Weeks

Pozisyon Sayısı

60

Yayın Yılı

2001

Polarization Key

POLARIZED HOUSING

Housing Material

Polymer

Terminal

Solder

Insertion Removal Method

Push In, Pull Out

Sıra Sayısı

2

Kurşunsuz Kodu

yes

JESD-609 Kodu

e3

Contact Finish

Gold

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Pattern

RECTANGULAR
