Volume pricing
- 1+ pcs$10.01
- 10+ pcs$9.45
- 100+ pcs$8.91
- 500+ pcs$8.41
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

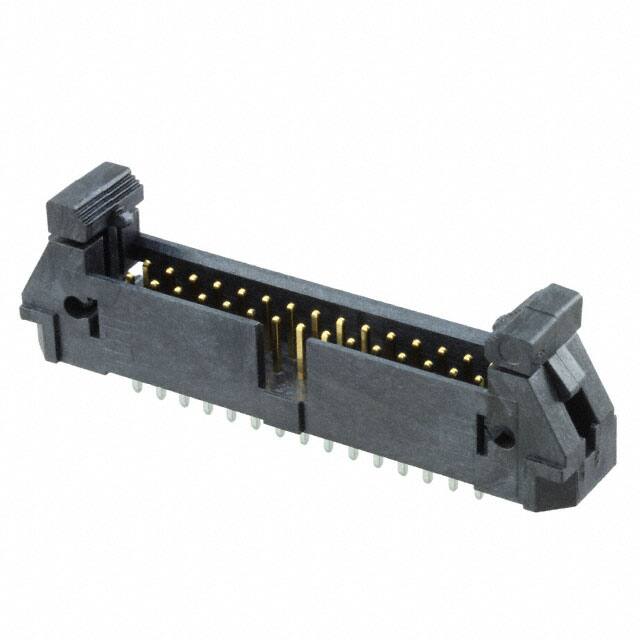

Specifications
- Insulation Color
- Black
- Pcb Contact Pattern
- RECTANGULAR
- Mating Contact Pitch
- 0.1 inch
- Housing Material
- Polymer
- Option
- GENERAL PURPOSE
- Gender
- Male
- Contact Length Post
- 0.120 3.05mm
- RoHS Durumu
- ROHS3 Compliant
- Contact Finish Mating
- Gold
- Çalışma Sıcaklığı
- -55°C~125°C
- Contact Lengthmating
- 0.225 5.72mm
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Terminal
- Solder
- Ambalaj
- Tube
- Additional Feature
- POLARIZED
- Depth
- 9.91mm
- Pitch Mating
- 0.100 2.54mm
- Number Of Pcb Rows
- 2
- JESD-609 Kodu
- e3
- Reach Svhc
- No SVHC
- Sıra Sayısı
- 2
- ECCN Kodu
- EAR99
- Uzunluk
- 55.73mm
- Montaj Tipi
- Through Hole
- Number Of Conductors
- ONE
- Iec Conformance
- NO
- Yayın Yılı
- 2013
- Polarization Key
- POLARIZED HOUSING
- Insulation Height
- 0.500 12.70mm
- Contact Type
- Male Pin
- Current Rating Amps
- 3A
- Filter Feature
- NO
- Shrouding
- Shrouded - 4 Wall
- Contact Shape
- Square
- Fastening Type
- Latch Lock/Eject Hooks
- Din Conformance
- NO
- Reliability
- COMMERCIAL
- Board Mounting Option
- SPLIT BOARD LOCK
- Connector Type
- Header
- Number Of Positions Loaded
- All
