Volume pricing
- 1+ pcs$10.69
- 10+ pcs$10.08
- 100+ pcs$9.51
- 500+ pcs$8.97
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

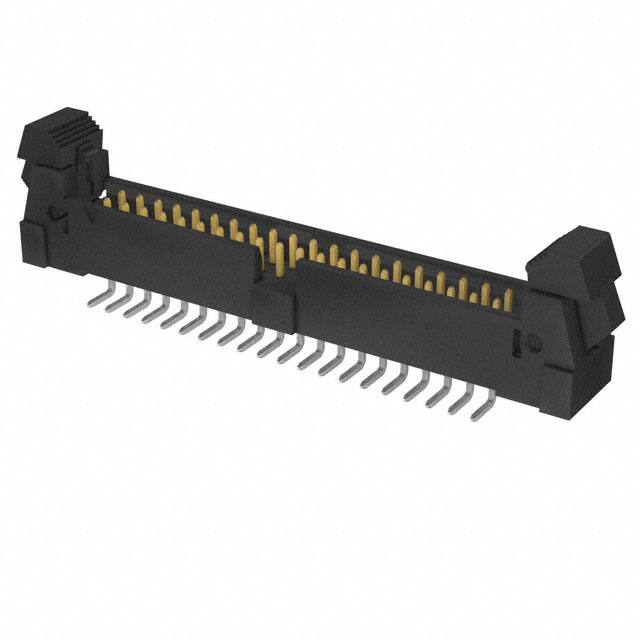

Specifications
- Current Rating Amps
- 3A
- Contact Shape
- Square
- Parça Durumu
- Active
- Pitch Mating
- 0.079 2.00mm
- Özellikler
- Keying Slot, Strain Relief
- Fastening Type
- Latch Lock/Eject Hooks
- Çalışma Sıcaklığı
- -55°C~125°C
- Sıra Sayısı
- 2
- Pozisyon Sayısı
- 40
- Row Spacing Mating
- 0.079 (2.00mm)
- Terminal
- Solder
- Contact Lengthmating
- 0.120 3.05mm
- Connector Type
- Header
- Contact Materials
- Phosphor Bronze
- Number Of Positions Loaded
- All
- Montaj Tipi
- Surface Mount
- JESD-609 Kodu
- e3
- Contact Type
- Male Pin
- Insulation Height
- 0.370 9.40mm
- Fabrika Tedarik Süresi
- 3 Weeks
- Seri
- EHT
- Contact Finish Thickness Mating
- 15.0μin 0.38μm
- Insulation Color
- Black
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Ambalaj
- Tube
- Contact Finish Post
- Tin
- Kurşunsuz Kodu
- yes
- ECCN Kodu
- EAR99
- RoHS Durumu
- ROHS3 Compliant
- Shrouding
- Shrouded - 4 Wall
- Gender
- Male
- Contact Finish Mating
- Gold
- Style
- Board to Cable/Wire
- Material Flammability Rating
- UL94 V-0
