Volume pricing
- 1+ pcs$5.18
- 10+ pcs$4.89
- 100+ pcs$4.61
- 500+ pcs$4.35
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

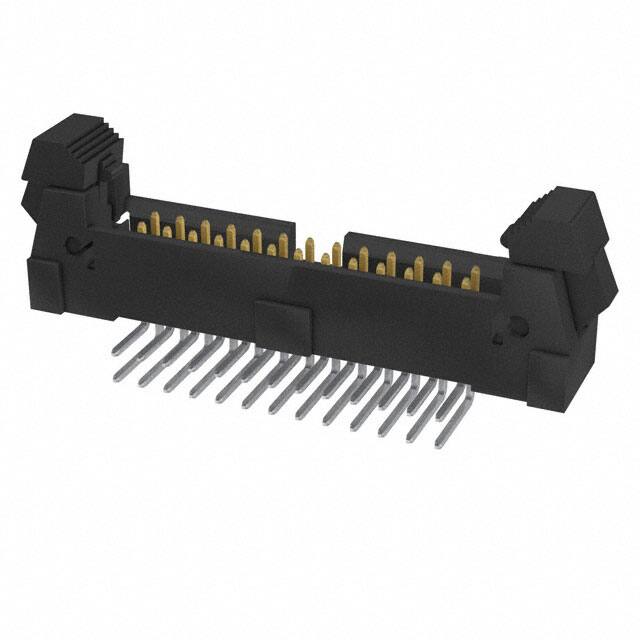

Specifications
- Reliability
- COMMERCIAL
- Reference Standard
- UL
- Option
- GENERAL PURPOSE
- Insulation Height
- 0.300 7.62mm
- Sıra Sayısı
- 2
- Filter Feature
- NO
- Çalışma Sıcaklığı
- -55°C~125°C
- Contact Shape
- Square
- Contact Materials
- Phosphor Bronze
- Connector Type
- Header
- Depth
- 15.71mm
- Terminal
- Solder
- Row Spacing Mating
- 0.079 (2.00mm)
- Radyasyon Dayanımı
- No
- Housing Material
- Polymer
- Pozisyon Sayısı
- 26
- Pcb Contact Pattern
- RECTANGULAR
- Orientation
- Right Angle
- Din Conformance
- NO
- Style
- Board to Cable/Wire
- Contact Finish Mating
- Gold
- Polarization Key
- POLARIZED HOUSING
- Mounting Option1
- LATCH & EJECT
- Iec Conformance
- NO
- Shrouding
- Shrouded - 4 Wall
- Insulation Color
- Black
- Max Current Rating
- 3A
- Contact Length Post
- 0.120 3.05mm
- Contact Finish Post
- Tin
- Ambalaj
- Tube
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Ul Flammability Code
- 94V-0
- Contact Type
- Male Pin
- JESD-609 Kodu
- e3
- Montaj Tipi
- Through Hole, Right Angle
- Number Of Positions Loaded
- All
- Body Breadth
- 0.3 inch
- Number Of Conductors
- ONE
- Fastening Type
- Latch Lock/Eject Hooks
- Özellikler
- Keying Slot
