Volume pricing
- 1+ pcs$8.07
- 10+ pcs$7.61
- 100+ pcs$7.18
- 500+ pcs$6.78
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

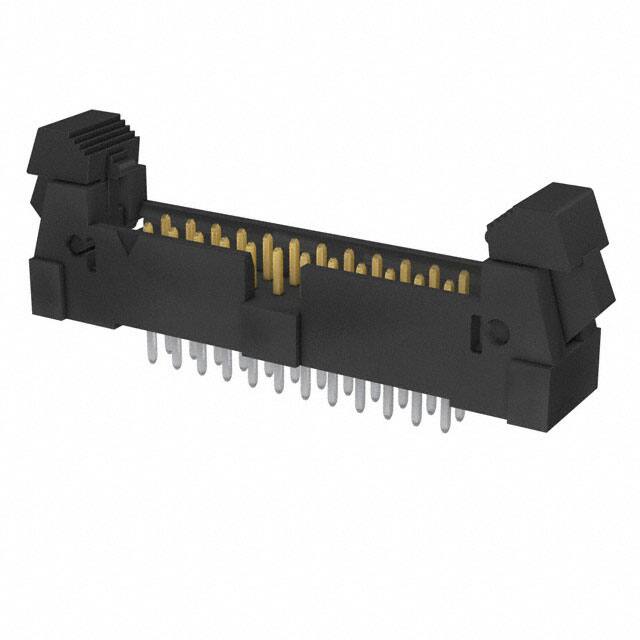

Specifications
- Depth
- 7.62mm
- Contact Materials
- Phosphor Bronze
- Connector Type
- Header
- Radyasyon Dayanımı
- No
- Row Spacing Mating
- 0.079 (2.00mm)
- Housing Material
- Polymer
- Terminal
- Solder
- Pozisyon Sayısı
- 24
- Çalışma Sıcaklığı
- -55°C~125°C
- Sıra Sayısı
- 2
- Filter Feature
- NO
- Contact Shape
- Square
- Insulation Height
- 0.370 9.40mm
- Reliability
- COMMERCIAL
- Reference Standard
- UL
- Option
- GENERAL PURPOSE
- Additional Feature
- LATCHED
- Ambalaj
- Tube
- Contact Finish Post
- Tin
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Insulation Color
- Black
- Max Current Rating
- 3A
- Contact Length Post
- 0.114 2.90mm
- Style
- Board to Cable/Wire
- Iec Conformance
- NO
- Polarization Key
- POLARIZED HOUSING
- Mounting Option1
- LATCH & EJECT
- Contact Finish Mating
- Gold
- Shrouding
- Shrouded - 4 Wall
- Pcb Contact Pattern
- RECTANGULAR
- Orientation
- Straight
- Din Conformance
- NO
- Contact Lengthmating
- 0.120 3.05mm
- Number Of Conductors
- ONE
- Fastening Type
- Latch Lock/Eject Hooks
- Mil Conformance
- NO
- Pitch Mating
- 0.079 2.00mm
- Parça Durumu
- Active
- Özellikler
- Keying Slot
- Number Of Pcb Rows
- 2
