Volume pricing
- 1+ pcs$4.90
- 10+ pcs$4.62
- 100+ pcs$4.36
- 500+ pcs$4.11
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

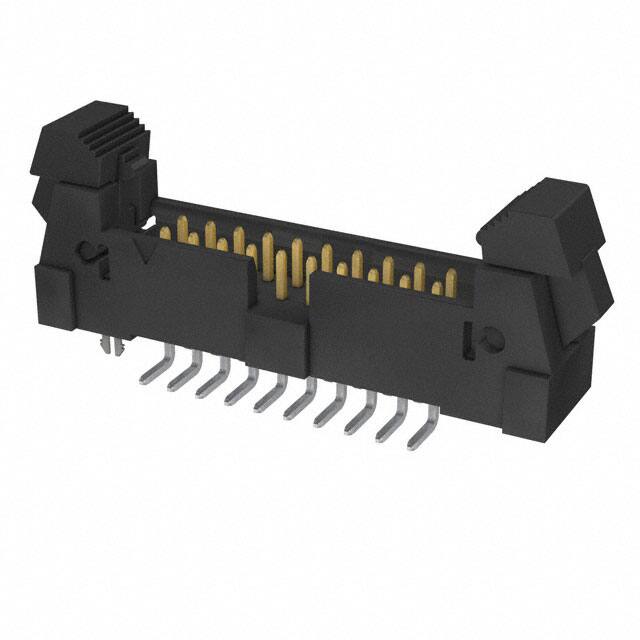

Specifications
- Fastening Type
- Latch Lock/Eject Hooks
- Number Of Conductors
- ONE
- Number Of Pcb Rows
- 2
- Özellikler
- Board Lock, Keying Slot
- Pitch Mating
- 0.079 2.00mm
- Parça Durumu
- Active
- Contact Lengthmating
- 0.120 3.05mm
- Total Number Of Contacts
- 20
- JESD-609 Kodu
- e3
- Contact Type
- Male Pin
- Number Of Positions Loaded
- All
- Montaj Tipi
- Surface Mount
- Body Breadth
- 0.3 inch
- Contact Finish Thickness Mating
- 3.00μin 0.076μm
- Seri
- EHT
- Fabrika Tedarik Süresi
- 3 Weeks
- Kurşunsuz Kodu
- yes
- Mating Contact Pitch
- 0.079 inch
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- RoHS Durumu
- ROHS3 Compliant
- Gender
- Male
- Material Flammability Rating
- UL94 V-0
- Plating Thickness
- FLASH inch
- Sıra Sayısı
- 2
- Çalışma Sıcaklığı
- -55°C~125°C
- Current Rating Amps
- 3A
- Contact Shape
- Square
- Terminal
- Solder
- Row Spacing Mating
- 0.079 (2.00mm)
- Pcb Contact Row Spacing
- 5.3086 mm
- Connector Type
- Header
- Contact Materials
- Phosphor Bronze
- Pozisyon Sayısı
- 20
- Reference Standard
- UL
- Reliability
- COMMERCIAL
- Insulation Height
- 0.370 9.40mm
- Insulation Color
- Black
- Contact Finish Post
- Tin
- Ambalaj
- Tube
- Insulation Materials
- Liquid Crystal Polymer (LCP)
