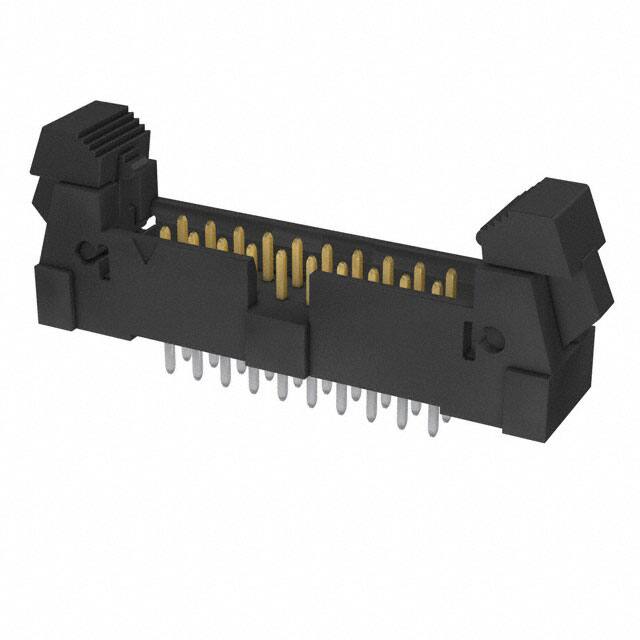

EHT-110-01-F-D

Specifications

RoHS Durumu

ROHS3 Compliant

Plating Thickness

3μin

Material Flammability Rating

UL94 V-0

Gender

Male

Fabrika Tedarik Süresi

3 Weeks

Seri

EHT

Contact Finish Thickness Mating

3.00μin 0.076μm

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mating Contact Pitch

0.079 inch

Uzunluk

33.79mm

Kurşunsuz Kodu

yes

Montaj Tipi

Through Hole

Number Of Positions Loaded

All

Ul Flammability Code

94V-0

Contact Type

Male Pin

JESD-609 Kodu

e3

Body Breadth

0.3 inch

Parça Durumu

Active

Pitch Mating

0.079 2.00mm

Mil Conformance

NO

Özellikler

Keying Slot

Number Of Pcb Rows

2

Number Of Conductors

ONE

Fastening Type

Latch Lock/Eject Hooks

Contact Lengthmating

0.120 3.05mm

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Orientation

Straight

Shrouding

Shrouded - 4 Wall

Style

Board to Cable/Wire

Iec Conformance

NO

Polarization Key

POLARIZED HOUSING

Mounting Option1

LATCH & EJECT

Contact Finish Mating

Gold

Max Current Rating

3A

Contact Length Post

0.114 2.90mm

Insulation Color

Black

Insulation Materials

Liquid Crystal Polymer (LCP)

Ambalaj

Tube
