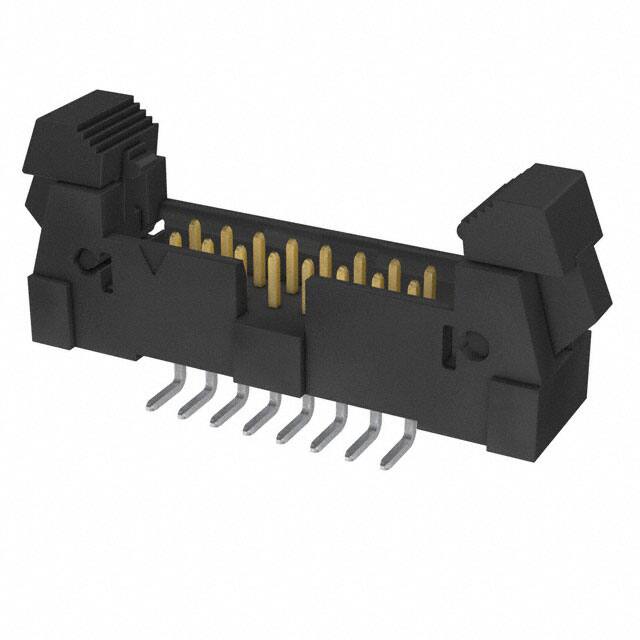

EHT-108-01-L-D-SM

Specifications

Body Breadth

0.3 inch

JESD-609 Kodu

e3

Contact Type

Male Pin

Ul Flammability Code

94V-0

Number Of Positions Loaded

All

Montaj Tipi

Surface Mount

Contact Lengthmating

0.120 3.05mm

Total Number Of Contacts

16

Fastening Type

Latch Lock/Eject Hooks

Number Of Conductors

ONE

Number Of Pcb Rows

2

Özellikler

Keying Slot

Parça Durumu

Active

Pitch Mating

0.079 2.00mm

Mil Conformance

NO

Gender

Male

Material Flammability Rating

UL94 V-0

Plating Thickness

10μin

RoHS Durumu

ROHS3 Compliant

Yayın Yılı

2015

Kurşunsuz Kodu

yes

Mating Contact Pitch

0.079 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Mixed Contacts

NO

Contact Finish Thickness Mating

15.0μin 0.38μm

Seri

EHT

Fabrika Tedarik Süresi

3 Weeks

Insulation Height

0.370 9.40mm

Reference Standard

UL

Reliability

COMMERCIAL

Option

GENERAL PURPOSE

Terminal

Solder

Pcb Contact Row Spacing

5.334 mm

Row Spacing Mating

0.079 (2.00mm)

Radyasyon Dayanımı

No

Connector Type

Header

Contact Materials

Phosphor Bronze

Pozisyon Sayısı

16

Filter Feature

NO

Sıra Sayısı

2
