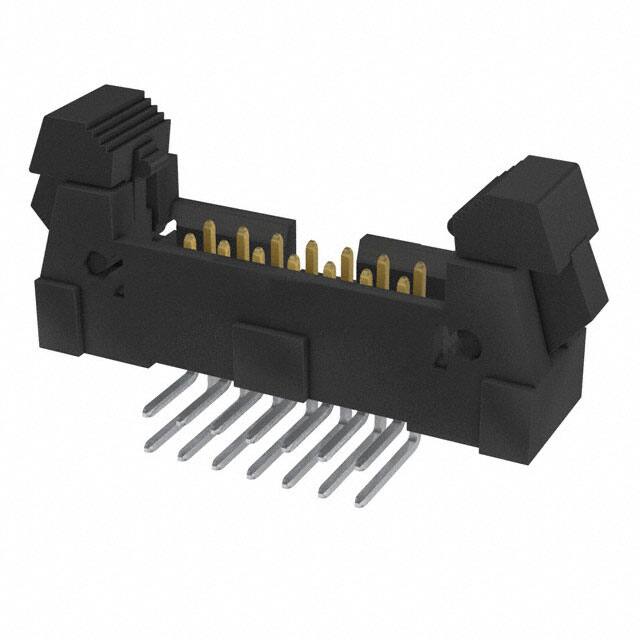

EHT-107-01-S-D-RA

Specifications

Insulation Materials

Liquid Crystal Polymer (LCP)

Ambalaj

Tube

Contact Finish Post

Tin

Contact Length Post

0.120 3.05mm

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Body Length Or Diameter

1.094 inch

Style

Board to Cable/Wire

Iec Conformance

NO

Polarization Key

POLARIZED HOUSING

Contact Finish Mating

Gold

Body Depth

0.508 inch

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Pozisyon Sayısı

14

Connector Type

Header

Contact Materials

Phosphor Bronze

Row Spacing Mating

0.079 (2.00mm)

Radyasyon Dayanımı

No

Terminal

Solder

Contact Shape

Square

Current Rating Amps

3A

Çalışma Sıcaklığı

-55°C~125°C

Filter Feature

NO

Sıra Sayısı

2

Insulation Height

0.300 7.62mm

Option

GENERAL PURPOSE

Additional Feature

POLARIZED

Reliability

COMMERCIAL

Reference Standard

UL

Nem Hassasiyeti (MSL)

Not Applicable

Mixed Contacts

NO

Mating Contact Pitch

0.079 inch

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

3 Weeks

Seri

EHT

Contact Finish Thickness Mating

30.0μin 0.76μm

Plating Thickness

30μin

Material Flammability Rating

UL94 V-0

Gender

Male
