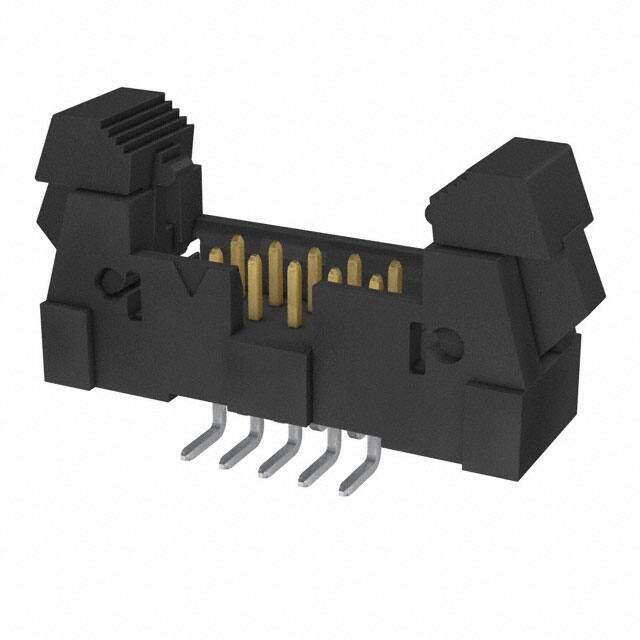

EHT-105-01-S-D-SM-P-TR

Specifications

Mating Contact Pitch

0.079 inch

Mixed Contacts

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Fabrika Tedarik Süresi

3 Weeks

Seri

EHT

Contact Finish Thickness Mating

30.0μin 0.76μm

Plating Thickness

30μin

Gender

Male

Material Flammability Rating

UL94 V-0

RoHS Durumu

ROHS3 Compliant

Total Number Of Contacts

10

Contact Lengthmating

0.120 3.05mm

Number Of Pcb Rows

2

Mil Conformance

NO

Pitch Mating

0.079 2.00mm

Parça Durumu

Active

Özellikler

Keying Slot, Pick and Place

Fastening Type

Latch Lock/Eject Hooks

Number Of Conductors

ONE

Body Breadth

0.3 inch

HTS Kodu

8536.69.40.40

Number Of Positions Loaded

All

Montaj Tipi

Surface Mount

JESD-609 Kodu

e3

Contact Type

Male Pin

Insulation Materials

Liquid Crystal Polymer (LCP)

Ambalaj

Tape & Reel (TR)

Contact Finish Post

Tin

ECCN Kodu

EAR99

Insulation Color

Black

Shrouding

Shrouded - 4 Wall

Body Length Or Diameter

0.937 inch

Iec Conformance

NO

Contact Finish Mating

Gold

Mounting Option1

LATCH & EJECT

Polarization Key

POLARIZED HOUSING

Style

Board to Cable/Wire

Din Conformance

NO

Body Depth

0.375 inch
