Volume pricing
- 1+ pcs$3.88
- 10+ pcs$3.66
- 100+ pcs$3.46
- 500+ pcs$3.26
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

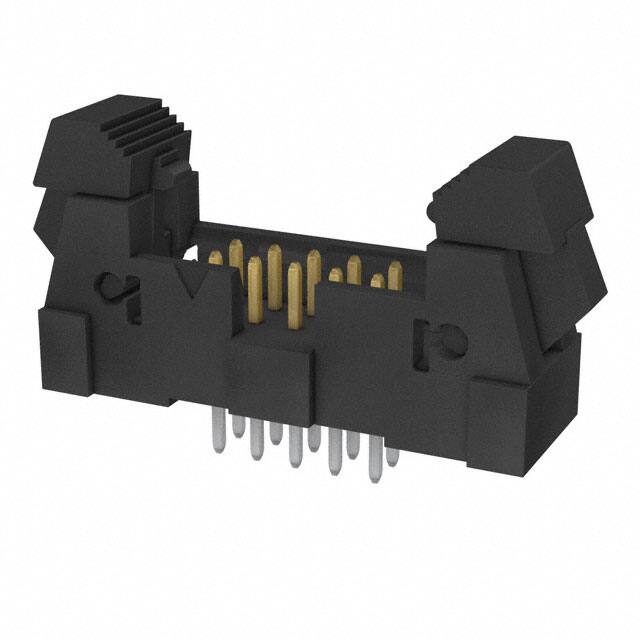

Specifications
- Terminal
- Solder
- Row Spacing Mating
- 0.079 (2.00mm)
- Radyasyon Dayanımı
- No
- Contact Materials
- Phosphor Bronze
- Connector Type
- Header
- Contact Lengthmating
- 0.120 3.05mm
- Pozisyon Sayısı
- 10
- Sıra Sayısı
- 2
- Fastening Type
- Latch Lock/Eject Hooks
- Çalışma Sıcaklığı
- -55°C~125°C
- Contact Shape
- Square
- Current Rating Amps
- 3A
- Özellikler
- Keying Slot, Strain Relief
- Parça Durumu
- Active
- Pitch Mating
- 0.079 2.00mm
- Insulation Height
- 0.370 9.40mm
- JESD-609 Kodu
- e3
- Contact Type
- Male Pin
- Number Of Positions Loaded
- All
- Montaj Tipi
- Through Hole
- Contact Finish Post
- Tin
- Ambalaj
- Tube
- Kurşunsuz Kodu
- yes
- Insulation Materials
- Liquid Crystal Polymer (LCP)
- Nem Hassasiyeti (MSL)
- Not Applicable
- Contact Finish Thickness Mating
- 15.0μin 0.38μm
- Seri
- EHT
- Insulation Color
- Black
- Fabrika Tedarik Süresi
- 3 Weeks
- Contact Length Post
- 0.114 2.90mm
- Contact Finish Mating
- Gold
- Gender
- Male
- Material Flammability Rating
- UL94 V-0
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- RoHS Durumu
- ROHS3 Compliant
- Montaj
- Through Hole
