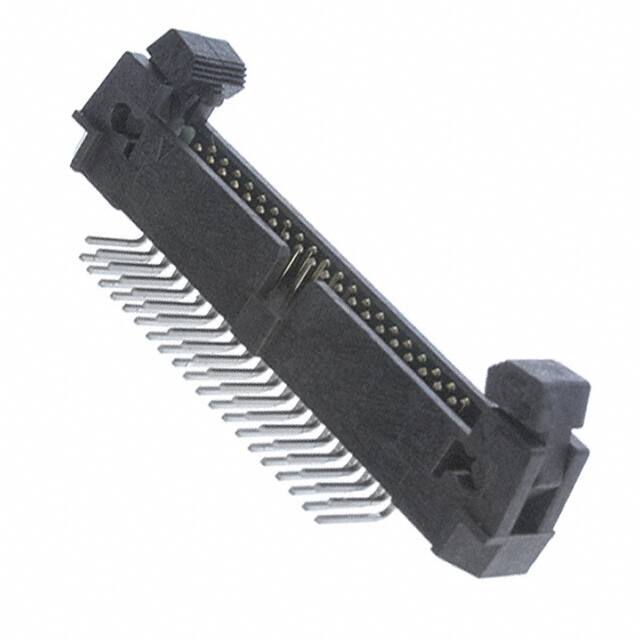

EHF-120-01-L-D-RA

Specifications

Pcb Contact Pattern

RECTANGULAR

Number Of Positions Loaded

All

Connector Type

Header

Style

Board to Cable/Wire

Insulation Height

0.263 6.67mm

Montaj Tipi

Through Hole, Right Angle

Sıra Sayısı

2

Housing Color

Black

Parça Durumu

Active

Plating Thickness

10μin

Number Of Pcb Rows

2

Contact Lengthmating

0.120 3.05mm

Fabrika Tedarik Süresi

2 Weeks

Genişlik

11.3mm

Gender

Male

Kurşunsuz

Lead Free

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Özellikler

Keying Slot

Max Current Rating

1.75A

Shrouding

Shrouded - 4 Wall

Terminal

Solder

Contact Length Post

0.090 2.29mm

Contact Finish Thickness Mating

10.0μin 0.25μm

Radyasyon Dayanımı

No

Pitch Mating

0.050 1.27mm

Reliability

COMMERCIAL

Mating Contact Pitch

0.05 inch

Contact Type

Male Pin

Option

GENERAL PURPOSE

Pozisyon Sayısı

40

Mil Conformance

NO

Orientation

Right Angle

Iec Conformance

NO

Seri

EHF

Housing Material

Polymer

Ambalaj

Tube

Number Of Conductors

ONE

Fastening Type

Latch Lock/Eject Hooks

Contact Finish Mating

Gold

Uzunluk

39.88mm
