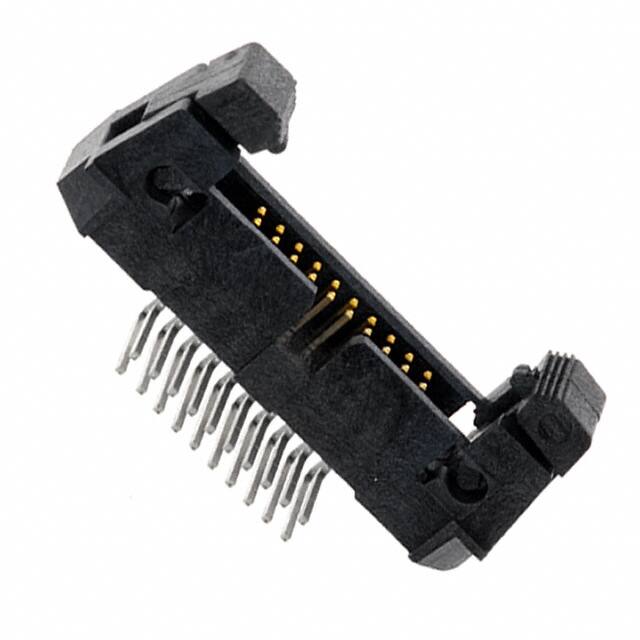

EHF-110-01-L-D-RA

Specifications

Mixed Contacts

NO

Montaj

Through Hole

Kurşunsuz Kodu

yes

Akım Değeri

1.75A

Contact Materials

Phosphor Bronze

Yayın Yılı

2003

Din Conformance

NO

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Depth

13.84mm

RoHS Durumu

ROHS3 Compliant

Fastening Type

Latch Lock/Eject Hooks

Polarization Key

POLARIZED HOUSING

Row Spacing Mating

0.050 (1.27mm)

Uzunluk

27.18mm

Contact Finish Mating

Gold

Filter Feature

NO

Contact Finish Post

Tin

Contact Shape

Square

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Length Post

0.090 2.29mm

Terminal

Solder

Reliability

COMMERCIAL

Pitch Mating

0.050 1.27mm

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Contact Type

Male Pin

Mating Contact Pitch

0.05 inch

Pozisyon Sayısı

20

Seri

EHF

Iec Conformance

NO

Orientation

Right Angle

Mil Conformance

NO

Ambalaj

Tube

Housing Material

Polymer

Number Of Conductors

ONE

Number Of Positions Loaded

All

Pcb Contact Pattern

RECTANGULAR
