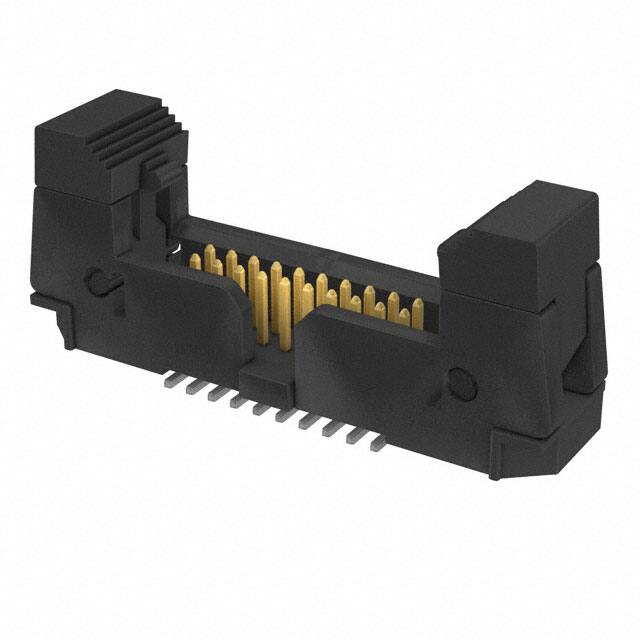

EHF-110-01-F-D-SM-P

Specifications

Çalışma Sıcaklığı

-55°C~125°C

Depth

6.67mm

RoHS Durumu

ROHS3 Compliant

Orientation

Straight

Yayın Yılı

2014

Iec Conformance

NO

Mil Conformance

NO

Din Conformance

NO

Contact Materials

Phosphor Bronze

Seri

EHF

Nem Hassasiyeti (MSL)

1 (Unlimited)

Housing Material

Polymer

Ambalaj

Tube

JESD-609 Kodu

e4

Option

GENERAL PURPOSE

Contact Type

Male Pin

Mixed Contacts

NO

Pozisyon Sayısı

20

Kurşunsuz Kodu

yes

Contact Finish Thickness Mating

3.00μin 0.076μm

Terminal

Solder

Radyasyon Dayanımı

No

Pitch Mating

0.050 1.27mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Özellikler

Keying Slot, Pick and Place

Gender

Male

Contact Finish Post

Tin

Contact Shape

Square

Max Current Rating

1.75A

Shrouding

Shrouded - 4 Wall

Filter Feature

NO

Insulation Color

Black

Total Number Of Contacts

20

Contact Lengthmating

0.120 3.05mm

Fabrika Tedarik Süresi

3 Weeks

Uzunluk

27.18mm

Row Spacing Mating

0.050 (1.27mm)

Sıra Sayısı

2

Contact Finish Mating

Gold

Parça Durumu

Active
