Volume pricing
- 1+ pcs$3.31
- 10+ pcs$3.13
- 100+ pcs$2.95
- 500+ pcs$2.78
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

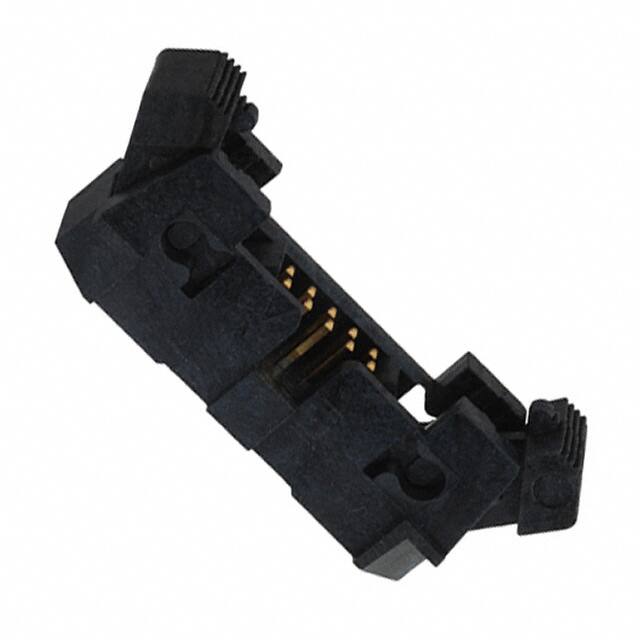

Specifications
- Number Of Positions Loaded
- All
- Pcb Contact Pattern
- RECTANGULAR
- Montaj Tipi
- Through Hole
- Insulation Height
- 0.325 8.25mm
- Connector Type
- Header
- Style
- Board to Cable/Wire
- Housing Color
- Black
- Sıra Sayısı
- 2
- Parça Durumu
- Active
- Number Of Pcb Rows
- 2
- Fabrika Tedarik Süresi
- 3 Weeks
- Contact Lengthmating
- 0.120 3.05mm
- Insulation Materials
- Liquid Crystal Polymer (LCP), Glass Filled
- Özellikler
- Keying Slot
- Kurşunsuz
- Lead Free
- Gender
- Male
- Max Current Rating
- 1.75A
- Shrouding
- Shrouded - 4 Wall
- Contact Length Post
- 0.107 2.71mm
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Terminal
- Solder
- Reliability
- COMMERCIAL
- Radyasyon Dayanımı
- No
- Pitch Mating
- 0.050 1.27mm
- Option
- GENERAL PURPOSE
- Contact Type
- Male Pin
- Mating Contact Pitch
- 0.05 inch
- Pozisyon Sayısı
- 10
- Iec Conformance
- NO
- Orientation
- Straight
- Mil Conformance
- NO
- Seri
- EHF
- Housing Material
- Polymer
- Ambalaj
- Tube
- Number Of Conductors
- ONE
- Fastening Type
- Latch Lock/Eject Hooks
- Uzunluk
- 20.83mm
- Polarization Key
- POLARIZED HOUSING
- Row Spacing Mating
- 0.050 (1.27mm)
- Contact Finish Mating
- Gold
