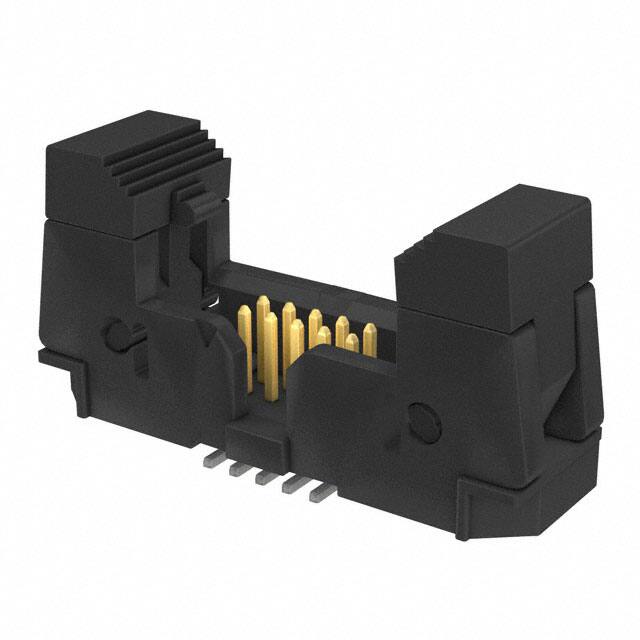

EHF-105-01-F-D-SM-K-TR

Specifications

Filter Feature

NO

Insulation Color

Black

Total Number Of Contacts

10

Contact Lengthmating

0.120 3.05mm

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Özellikler

Keying Slot, Pick and Place

Contact Finish Post

Tin

Gender

Male

Contact Shape

Square

Shrouding

Shrouded - 4 Wall

Number Of Positions Loaded

All

Insulation Height

0.325 8.25mm

Fastening Type

Latch Lock/Eject Hooks

Montaj Tipi

Surface Mount

Style

Board to Cable/Wire

Connector Type

Header

Row Spacing Mating

0.050 (1.27mm)

Sıra Sayısı

2

Contact Finish Mating

Gold

Parça Durumu

Active

Din Conformance

NO

Mil Conformance

NO

Yayın Yılı

2013

Iec Conformance

NO

Contact Materials

Phosphor Bronze

Seri

EHF

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e4

Ambalaj

Tape & Reel (TR)

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-55°C~125°C

Current Rating Amps

1.75A

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Mating

3.00μin 0.076μm

Terminal

Solder

Radyasyon Dayanımı

No

Pitch Mating

0.050 1.27mm

Contact Type

Male Pin

Option

GENERAL PURPOSE

Mixed Contacts

NO
