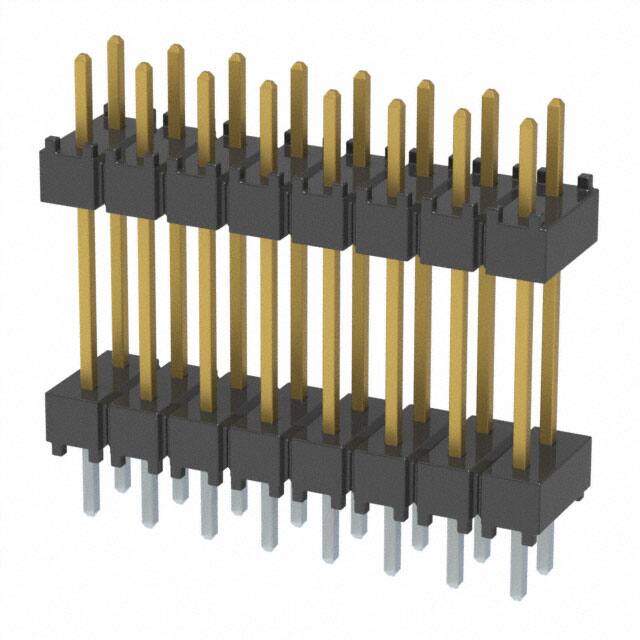

Specifications
- Length Stack Height
- 0.500 12.700mm
- Contact Materials
- Bronze
- Filter Feature
- NO
- Option
- GENERAL PURPOSE
- Connector Type
- BOARD STACKING CONNECTOR
- Min. Çalışma Sıcaklığı
- -55°C
- Row Spacing
- 0.100 (2.54mm)
- Maks. Çalışma Sıcaklığı
- 125°C
- JESD-609 Kodu
- e3
- Terminal
- Solder
- Din Conformance
- NO
- Gender
- Male
- Fabrika Tedarik Süresi
- 3 Weeks
- Iec Conformance
- NO
- Parça Durumu
- Active
- Mixed Contacts
- NO
- Orientation
- Straight
- Sıra Sayısı
- 2
- Renk
- Black
- Uzunluk
- 20.32mm
- Length Overall Pin
- 0.830 21.082mm
- Ambalaj
- Bulk
- Seri
- Flex Stack, DW
- Housing Material
- Polyester
- Mating Information
- MULTIPLE MATING PARTS AVAILABLE
- RoHS Durumu
- ROHS3 Compliant
- Pozisyon Sayısı
- 16
- Depth
- 5.08mm
- Montaj Tipi
- Through Hole
- Contact Finish Post Mating
- Gold
- Length Tail
- 0.110 2.794mm
- Total Number Of Contacts
- 16
- Mil Conformance
- NO
- Kurşunsuz Kodu
- yes
- Pitch
- 0.100 2.54mm
- Contact Finish Thickness Post Mating
- 3.00μin 0.076μm
- Nem Hassasiyeti (MSL)
- Not Applicable
- Length Post Mating
- 0.220 5.588mm
