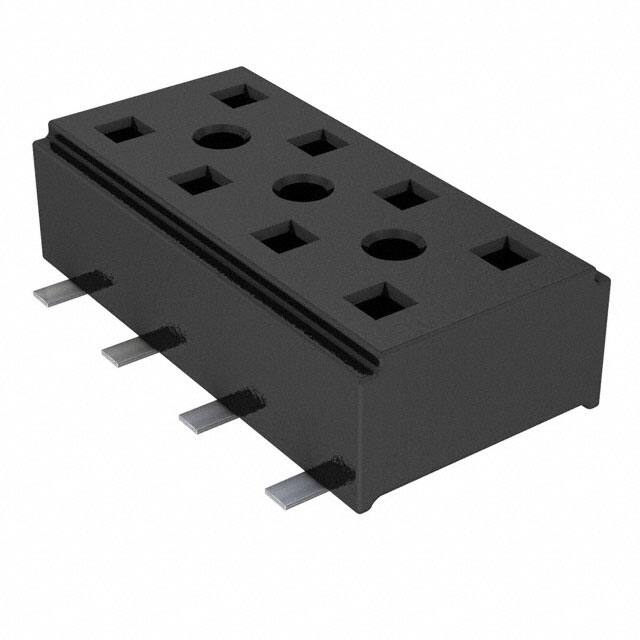

CLT-104-02-L-D-A

Specifications

Additional Feature

TIGER CLAW CONTACT, E.L.P

Number Of Conductors

ONE

Sıra Sayısı

2

Depth

5.16mm

Terminal

Solder

Row Spacing Mating

0.079 (2.00mm)

Total Number Of Contacts

8

Fastening Type

Push-Pull

Mil Conformance

NO

Yayın Yılı

2010

Orientation

Vertical

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Mixed Contacts

NO

Uzunluk

8mm

Iec Conformance

NO

Seri

CLT

Plating Thickness

10μin

Contact Materials

Phosphor Bronze

Current Rating Amps

4.1A per Contact

Fabrika Tedarik Süresi

3 Weeks

Style

Board to Board

Body Breadth

0.157 inch

Radyasyon Dayanımı

No

Contact Type

Female Socket

Pozisyon Sayısı

8

Mating Contact Pitch

0.079 inch

Housing Material

Polymer

Board Mounting Option

PEG

Din Conformance

NO

Kurşunsuz Kodu

yes

Reliability

COMMERCIAL

Özellikler

Board Guide

Montaj Tipi

Surface Mount

Insertion Forcemax

.5004 N

Insulation Color

Black

Insulation Height

0.083 2.10mm

JESD-609 Kodu

e3

Number Of Positions Loaded

All

Mounting Option1

LOCKING
