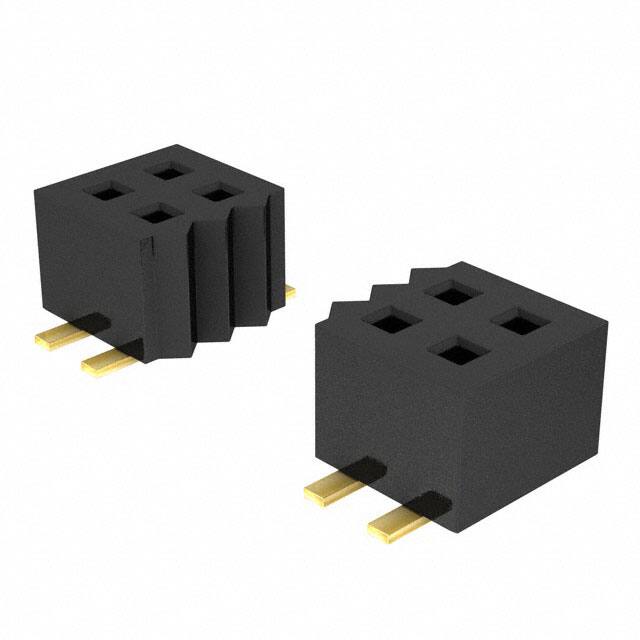

CLP-105-02-G-D

Specifications

Reference Standard

UL

Mil Conformance

NO

Row Spacing Mating

0.050 (1.27mm)

Genişlik

3.05mm

Filter Feature

NO

Pozisyon Sayısı

10

Total Number Of Contacts

10

Material Flammability Rating

UL94 V-0

Insulation Materials

Liquid Crystal Polymer (LCP)

Number Of Conductors

ONE

Terminal

Solder

Number Of Positions Loaded

All

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Din Conformance

NO

Voltage Rated Dc

340V

HTS Kodu

8536.69.40.40

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Depth

4.32mm

Contact Type

Female Socket

Style

Board to Board

Contact Finish Thickness Mating

10.0μin 0.25μm

Contact Materials

Phosphor Bronze

Option

GENERAL PURPOSE

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Gold

Reach Svhc

No SVHC

Mixed Contacts

NO

ECCN Kodu

EAR99

RoHS Durumu

ROHS3 Compliant

Number Of Pcb Rows

2

Parça Durumu

Active

Uzunluk

6.78mm

Pitch Mating

0.050 1.27mm

Iec Conformance

NO

Seri

CLP

JESD-609 Kodu

e4
