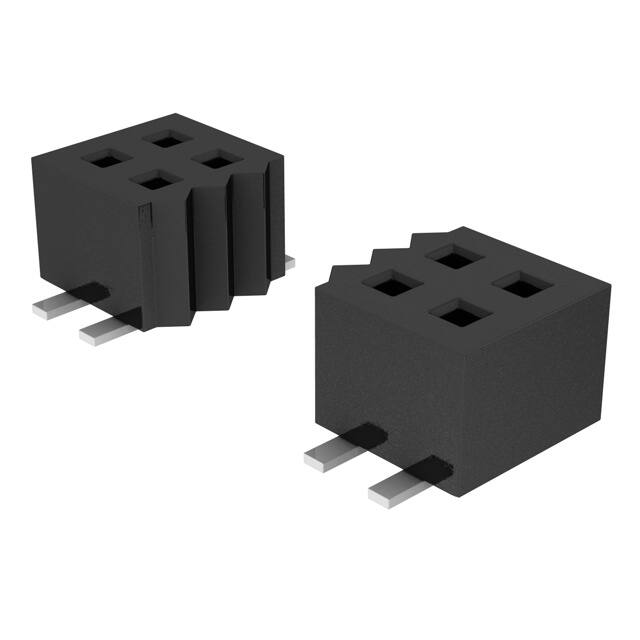

CLP-105-02-F-D-P-TR

Specifications

Iec Conformance

NO

Parça Durumu

Active

Number Of Pcb Rows

2

Uzunluk

6.78mm

Pitch Mating

0.050 1.27mm

Gender

Female

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.084 2.14mm

Fabrika Tedarik Süresi

3 Weeks

Housing Material

Polymer

JESD-609 Kodu

e3

Reliability

COMMERCIAL

Seri

CLP

Kurşunsuz

Lead Free

Radyasyon Dayanımı

No

Contact Resistance

10mOhm

Mounting Option1

LOCKING

Contact Shape

Square

Voltage Rated Ac

240V

Connector Type

Receptacle

Current Rating Amps

3.3A per Contact

Mating Contact Pitch

0.05 inch

Yayın Yılı

2015

Additional Feature

E.L.P., LOW PROFILE, TIGER CLAW

Fastening Type

Push-Pull

Orientation

Straight

Kurşunsuz Kodu

yes

Mil Conformance

NO

Row Spacing Mating

0.050 (1.27mm)

Reference Standard

UL

Contact Finish Post

Tin

Sıra Sayısı

2

Din Conformance

NO

Number Of Conductors

ONE

Number Of Positions Loaded

All

Terminal

Solder

Çalışma Sıcaklığı

-55°C~125°C

Insulation Materials

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

10
