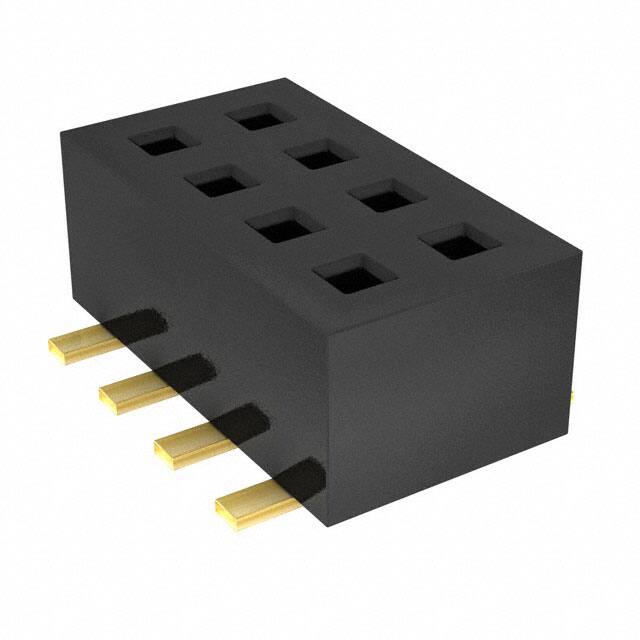

CLP-104-02-G-D

Specifications

Voltage Rated Dc

340V

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Depth

3.05mm

Contact Type

Female Socket

Style

Board to Board

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

10.0μin 0.25μm

Option

GENERAL PURPOSE

Montaj Tipi

Surface Mount

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Bulk

Pcb Contact Pattern

RECTANGULAR

Contact Finish Mating

Gold

Reach Svhc

No SVHC

Mixed Contacts

NO

Reference Standard

UL

Mil Conformance

NO

Row Spacing Mating

0.050 (1.27mm)

Genişlik

3.05mm

Filter Feature

NO

Pozisyon Sayısı

8

Insulation Materials

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

8

Number Of Conductors

ONE

Number Of Positions Loaded

All

Terminal

Solder

Çalışma Sıcaklığı

-55°C~125°C

Sıra Sayısı

2

Din Conformance

NO

Contact Shape

Square

Voltage Rated Ac

240V

Connector Type

Receptacle

Radyasyon Dayanımı

No

Contact Resistance

10mOhm

Kurşunsuz

Lead Free

Montaj

Surface Mount

Orientation

Straight

Kurşunsuz Kodu

yes

Fastening Type

Push-Pull
