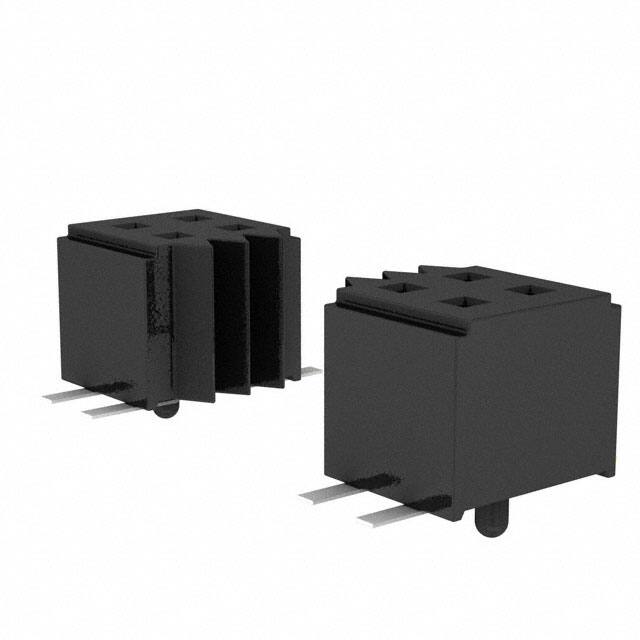

CLM-111-02-L-D-A

Specifications

Sıra Sayısı

2

Din Conformance

NO

Depth

2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Terminal

Solder

Total Number Of Contacts

22

Row Spacing Mating

0.039 (1.00mm)

Fastening Type

Push-Pull

Özellikler

Board Guide

Mil Conformance

NO

Montaj Tipi

Surface Mount

Yayın Yılı

2012

Insulation Color

Black

Insulation Height

0.084 2.14mm

Orientation

Straight

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

Parça Durumu

Active

Number Of Positions Loaded

All

Max Current Rating

3A

Mixed Contacts

NO

Pitch Mating

0.039 1.00mm

Uzunluk

11.43mm

Option

GENERAL PURPOSE

Çalışma Sıcaklığı

-55°C~125°C

Contact Shape

Square

Iec Conformance

NO

Seri

CLM

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

10.0μin 0.25μm

Current Rating Amps

2.8A per Contact

Ambalaj

Tube

Filter Feature

NO

Fabrika Tedarik Süresi

6 Weeks

Contact Finish Mating

Gold

Contact Finish Post

Tin

RoHS Durumu

ROHS3 Compliant

Style

Board to Board

Terminal Adımı

1mm

Kurşunsuz

Lead Free
