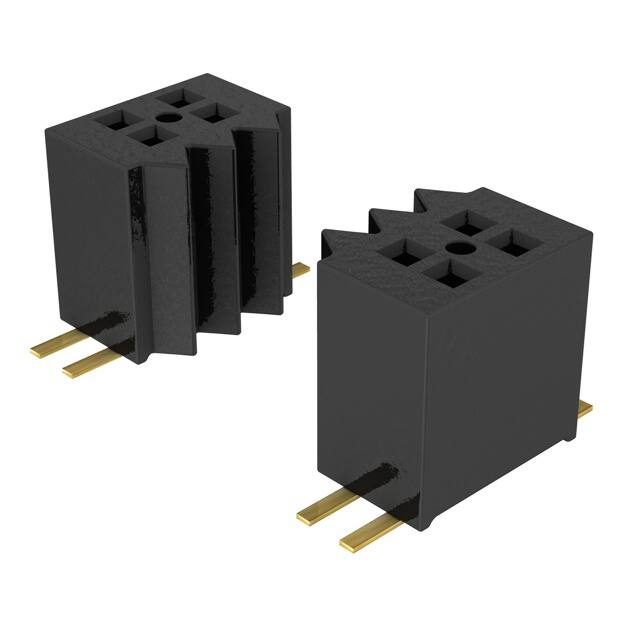

CLE-119-01-G-DV-P

Specifications

Reliability

COMMERCIAL

Ambalaj

Tube

Pitch Mating

0.031 0.80mm

Iec Conformance

NO

Row Spacing Mating

0.047 (1.20mm)

Insulation Resistance

5000000000Ohm

Current Rating Amps

2.7A per Contact

Number Of Pcb Rows

2

RoHS Durumu

ROHS3 Compliant

Çalışma Sıcaklığı

-55°C~125°C

Withdrawl Forcemin

.3336 N

Mil Conformance

NO

Style

Board to Board

Insulation Color

Black

Contact Finish Thickness Post

10.0μin 0.25μm

Dielectric Withstanding Voltage

375VAC V

Contact Type

Female Socket

Fastening Type

Push-Pull

Terminal

Solder

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Din Conformance

NO

JESD-609 Kodu

e4

Montaj Tipi

Surface Mount

Mating Contact Pitch

0.031 inch

Fabrika Tedarik Süresi

3 Weeks

Terminal Adımı

0.8mm

Özellikler

Pick and Place

Material Flammability Rating

UL94 V-0

Connector Type

Receptacle, Pass Through

Body Length Or Diameter

0.598 inch

Contact Finish Mating

Gold

Contact Shape

Square

Gender

Female

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Insertion Forcemax

.556 N

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Finish Thickness Mating

10.0μin 0.25μm

Insulation Materials

Liquid Crystal Polymer (LCP)
