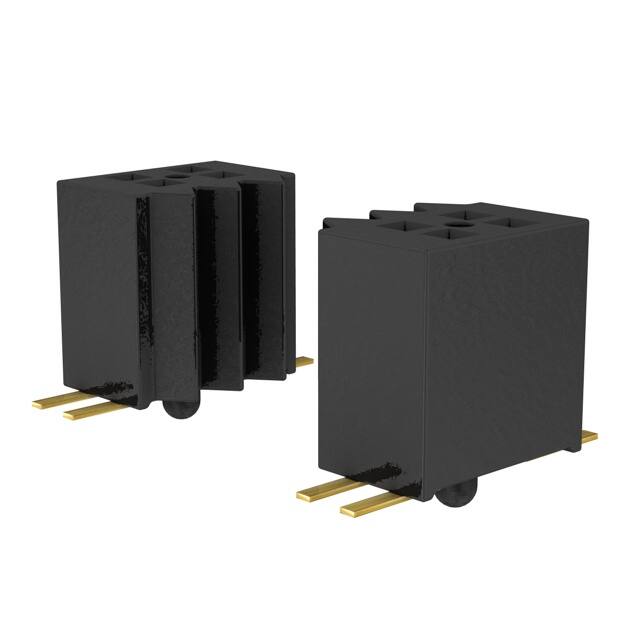

CLE-111-01-G-DV-A

Specifications

Reference Standard

UL

Additional Feature

TOP ENTRY, BOTTOM ENTRY

Plating Thickness

10μin

Mixed Contacts

NO

Seri

CLE

Filter Feature

NO

Number Of Conductors

ONE

Pozisyon Sayısı

22

Total Number Of Contacts

22

Kurşunsuz Kodu

yes

Contact Resistance

15mOhm

Contact Materials

Beryllium Copper

Insulation Height

0.130 3.30mm

Sıra Sayısı

2

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Polarization Key

POLARIZED HOUSING

Montaj

Surface Mount

Contact Finish Thickness Mating

10.0μin 0.25μm

Insertion Forcemax

.556 N

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Shape

Square

Contact Finish Mating

Gold

Gender

Receptacle

Reach Svhc

No SVHC

Mating Contact Pitch

0.031 inch

Montaj Tipi

Surface Mount

Body Length Or Diameter

0.347 inch

Connector Type

Receptacle, Pass Through

Material Flammability Rating

UL94 V-0

Özellikler

Board Guide

Terminal Adımı

0.8mm

Fabrika Tedarik Süresi

6 Weeks

Din Conformance

NO

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

JESD-609 Kodu

e4

Terminal

Solder
