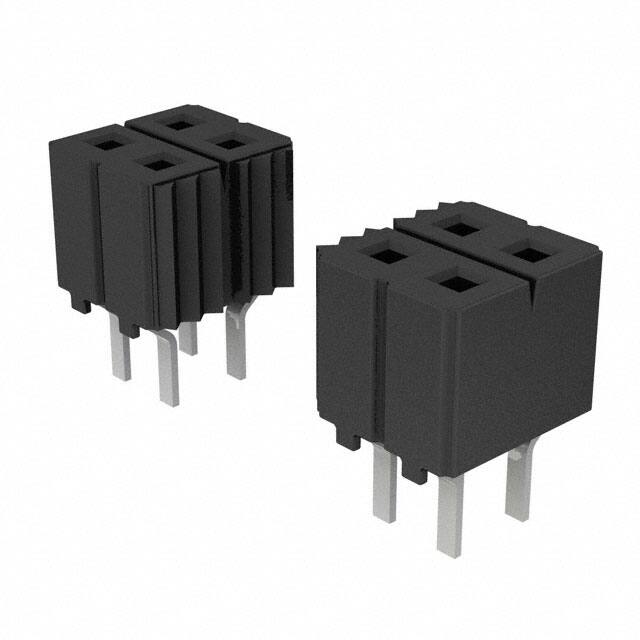

CES-111-01-T-D

Specifications

Insulation Materials

Polybutylene Terephthalate (PBT)

Depth

5.59mm

RoHS Durumu

ROHS3 Compliant

Seri

CES

Montaj Tipi

Through Hole

Uzunluk

27.94mm

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

2

Insulation Height

0.200 5.08mm

Filter Feature

NO

Mating Contact Pitch

0.1 inch

Çalışma Sıcaklığı

-55°C~105°C

Number Of Positions Loaded

All

Terminal

Solder

Polarization Key

POLARIZED HOUSING

Montaj

Through Hole

Kurşunsuz

Lead Free

Pozisyon Sayısı

22

ECCN Kodu

EAR99

Reach Svhc

No SVHC

Contact Finish Mating

Tin

Max Voltage Rating Ac

400V

Number Of Conductors

ONE

Housing Material

Polyester

Row Spacing Mating

0.100 (2.54mm)

Contact Materials

Phosphor Bronze

Material Flammability Rating

UL94 V-0

Orientation

Straight

Reference Standard

UL, CSA

Kurşunsuz Kodu

yes

Pitch Mating

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Contact Type

Female Socket

Rated Current Signal

1A

Din Conformance

NO

Iec Conformance

NO

Sıra Sayısı

2

Connector Type

Receptacle

Mil Conformance

NO
