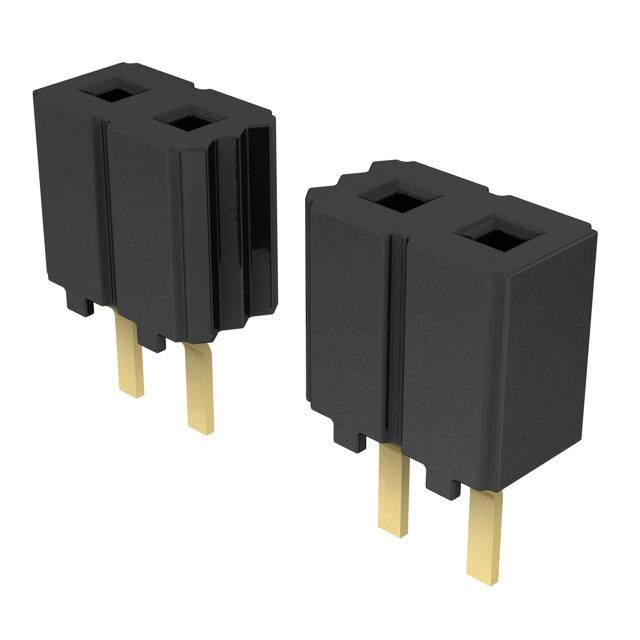

CES-105-01-G-S

Specifications

Seri

CES

Insulation Color

Black

Insulation Materials

Polybutylene Terephthalate (PBT)

Depth

3.05mm

RoHS Durumu

ROHS3 Compliant

Max Current Rating

1A

Plating Thickness

20μin

Radyasyon Dayanımı

No

Filter Feature

NO

Number Of Pcb Rows

1

Contact Finish Thickness Mating

20.0μin 0.51μm

Insulation Height

0.200 5.08mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Uzunluk

12.7mm

Montaj Tipi

Through Hole

ECCN Kodu

EAR99

Pozisyon Sayısı

5

Reach Svhc

No SVHC

Polarization Key

POLARIZED HOUSING

Terminal

Solder

Çalışma Sıcaklığı

-55°C~125°C

Number Of Positions Loaded

All

Contact Materials

Phosphor Bronze

Housing Material

Polyester

Max Voltage Rating Ac

333V

Number Of Conductors

ONE

Contact Finish Mating

Gold

Contact Type

Female Socket

Pcb Contact Pattern

RECTANGULAR

Pitch Mating

0.100 2.54mm

Kurşunsuz Kodu

yes

Reference Standard

UL, CSA

Orientation

Straight

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Fabrika Tedarik Süresi

3 Weeks

Mil Conformance

NO

Connector Type

Receptacle

Sıra Sayısı

1
