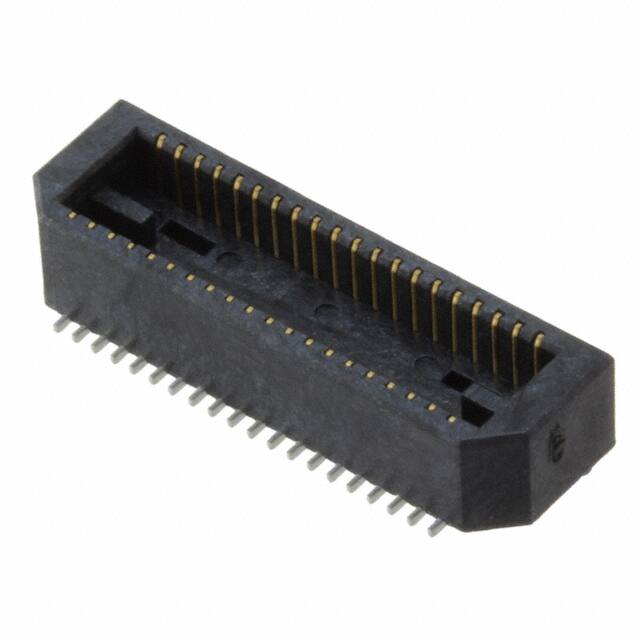

BTE-020-01-L-D-A

Specifications

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Iec Conformance

NO

Housing Material

Polymer

Min. Çalışma Sıcaklığı

-55°C

Pcb Contact Row Spacing

6.096 mm

Parça Durumu

Active

Height Above Board

0.168 4.27mm

Din Conformance

NO

Board Mounting Option

POSITIONING PIN

Seri

BTE

Durability

100 Cycles

Uzunluk

20mm

JESD-609 Kodu

e3

RoHS Durumu

ROHS3 Compliant

Nominal Gerilim

225V

Depth

5.97mm

Mil Conformance

NO

Contact Gender

MALE

Polarization Key

ENDS

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

2

Filter Feature

NO

Plating Thickness

10μin

Reliability

COMMERCIAL

Orientation

Straight

Akım Değeri

2A

Sıra Sayısı

2

Contact Style

CENTRONIC

Pitch

0.031 0.80mm

Özellikler

Board Guide

Total Number Of Contacts

40

Stack Height Mating

5.03mm

Contact Finish Thickness

10.0μin 0.25μm

Montaj Tipi

Surface Mount

Terminal

Solder

Option

GENERAL PURPOSE

Maks. Çalışma Sıcaklığı

125°C

Connector Type

Header, Outer Shroud Contacts

ECCN Kodu

EAR99
