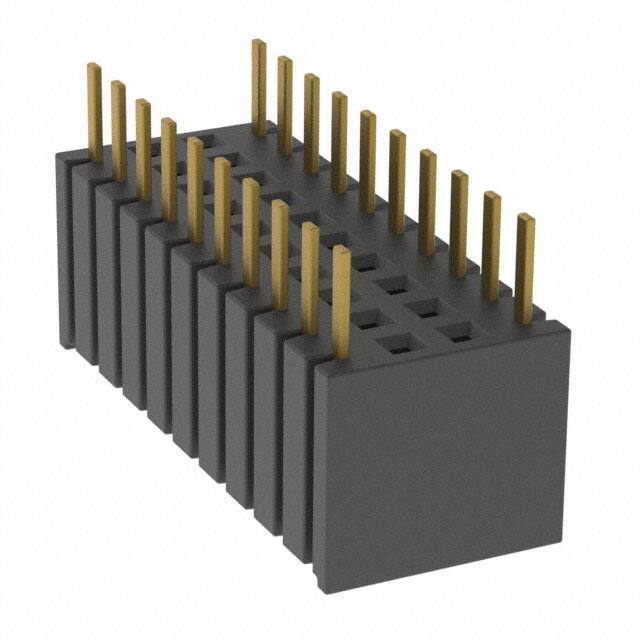

BSW-110-04-G-D

Specifications

Fabrika Tedarik Süresi

3 Weeks

Contact Shape

Square

Contact Finish Post

Tin

Terminal

Solder

Sıra Sayısı

2

Housing Material

Thermoplastic

Gender

Receptacle

Contact Finish Thickness Mating

20.0μin 0.51μm

Çalışma Sıcaklığı

-55°C~125°C

Dielectric Withstanding Voltage

1000VAC V

Insulation Materials

Polyethylene Terephthalate (PET), Glass Filled

Max Current Rating

3A

Insulation Height

0.350 8.89mm

Parça Durumu

Active

Number Of Positions Loaded

All

Seri

BSW

Kurşunsuz Kodu

yes

Orientation

Straight

JESD-609 Kodu

e4

Mating Contact Pitch

0.1 inch

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

Not Applicable

Iec Conformance

NO

Connector Type

Receptacle, Breakaway

Style

Board to Board

Mil Conformance

NO

Contact Length Post

0.165 4.19mm

Filter Feature

NO

Din Conformance

NO

Depth

10.16mm

Polarization Key

POLARIZED HOUSING

Radyasyon Dayanımı

No

Montaj Tipi

Through Hole, Bottom Mount

Pitch Mating

0.100 2.54mm

Insulation Resistance

5000000000Ohm

Number Of Pcb Rows

2

Rated Current Signal

3A

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull
