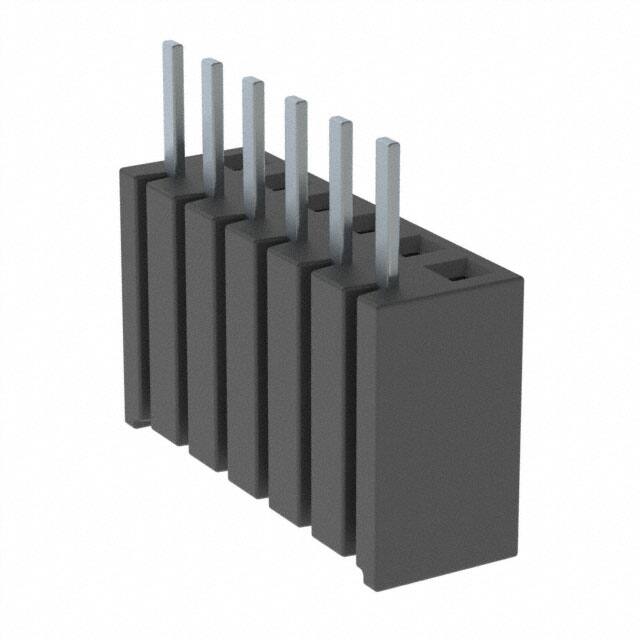

BSW-106-04-T-S

Specifications

Contact Shape

Square

Fabrika Tedarik Süresi

3 Weeks

Gender

Receptacle

Housing Material

Thermoplastic

Sıra Sayısı

1

Terminal

Solder

Max Current Rating

3A

Insulation Materials

Polyethylene Terephthalate (PET), Glass Filled

Çalışma Sıcaklığı

-55°C~105°C

Number Of Positions Loaded

All

Parça Durumu

Active

Insulation Height

0.350 8.89mm

JESD-609 Kodu

e3

Orientation

Straight

Kurşunsuz Kodu

yes

Seri

BSW

Iec Conformance

NO

Terminal Adımı

2.54mm

Nem Hassasiyeti (MSL)

Not Applicable

Number Of Conductors

ONE

Mil Conformance

NO

ECCN Kodu

EAR99

Connector Type

Receptacle, Breakaway

Style

Board to Board

Withdrawl Forcemin

2.224 N

Din Conformance

NO

Filter Feature

NO

Contact Length Post

0.170 4.32mm

Rated Current Signal

3A

Number Of Pcb Rows

1

Insulation Resistance

5000000000Ohm

Pitch Mating

0.100 2.54mm

Montaj Tipi

Through Hole, Bottom Mount

Radyasyon Dayanımı

No

Polarization Key

POLARIZED HOUSING

Depth

5.08mm

Pozisyon Sayısı

6

Fastening Type

Push-Pull

Body Breadth

0.2 inch

Option

GENERAL PURPOSE
