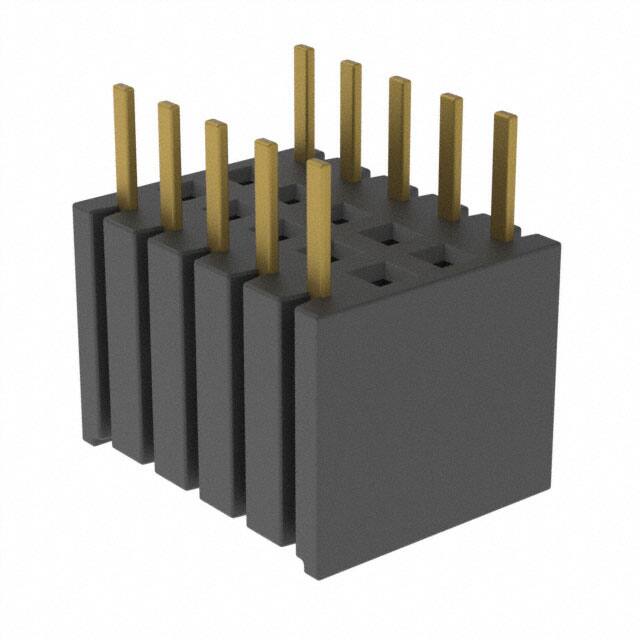

BSW-105-04-G-D

Specifications

Contact Materials

Phosphor Bronze

Row Spacing Mating

0.100 (2.54mm)

Pcb Contact Pattern

RECTANGULAR

Reach Svhc

No SVHC

Contact Finish Mating

Gold

Mixed Contacts

NO

Uzunluk

13.21mm

Contact Type

Female Socket

Reference Standard

UL, CSA

Radyasyon Dayanımı

No

Polarization Key

POLARIZED HOUSING

Depth

10.16mm

Insulation Resistance

5000000000Ohm

Kurşunsuz

Lead Free

Pitch Mating

0.100 2.54mm

Rated Current Signal

3A

Number Of Pcb Rows

2

Montaj Tipi

Through Hole, Bottom Mount

Body Breadth

0.4 inch

Fastening Type

Push-Pull

Option

GENERAL PURPOSE

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

10

Yayın Yılı

2009

Ambalaj

Bulk

Insulation Color

Black

Contact Resistance

10mOhm

Reliability

COMMERCIAL

RoHS Durumu

ROHS3 Compliant

Ul Flammability Code

94V-0

Seri

BSW

Kurşunsuz Kodu

yes

Mating Contact Pitch

0.1 inch

Orientation

Straight

JESD-609 Kodu

e4

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Connector Type

Receptacle, Breakaway

Style

Board to Board
