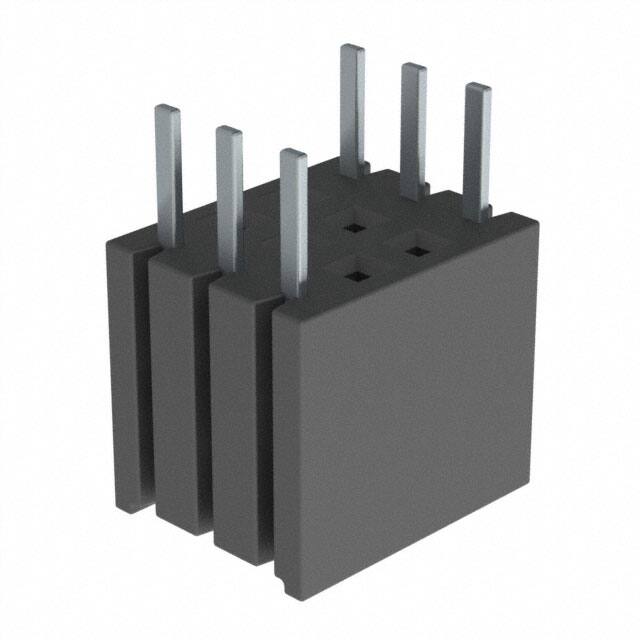

BSW-103-04-T-D

Specifications

Contact Shape

Square

Fabrika Tedarik Süresi

3 Weeks

Gender

Receptacle

Housing Material

Thermoplastic

Sıra Sayısı

2

Terminal

Solder

Insulation Materials

Polyethylene Terephthalate (PET), Glass Filled

Max Current Rating

3A

Dielectric Withstanding Voltage

1000VAC V

Çalışma Sıcaklığı

-55°C~105°C

Number Of Positions Loaded

All

Insulation Height

0.350 8.89mm

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Orientation

Straight

JESD-609 Kodu

e3

Seri

BSW

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

Not Applicable

Iec Conformance

NO

Number Of Conductors

ONE

Mil Conformance

NO

Style

Board to Board

Connector Type

Receptacle, Breakaway

Filter Feature

NO

Din Conformance

NO

Contact Length Post

0.165 4.19mm

Insulation Resistance

5000000000Ohm

Pitch Mating

0.100 2.54mm

Number Of Pcb Rows

2

Rated Current Signal

3A

Montaj Tipi

Through Hole, Bottom Mount

Radyasyon Dayanımı

No

Polarization Key

POLARIZED HOUSING

Depth

10.16mm

Pozisyon Sayısı

6

Body Breadth

0.4 inch

Fastening Type

Push-Pull

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE
