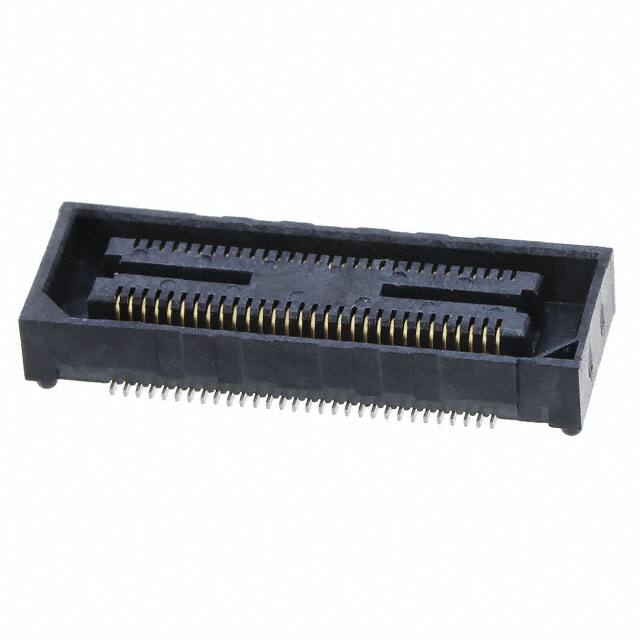

BSH-030-01-F-D-A-TR

Specifications

Contact Finish

Gold

Reference Standard

UL

Total Number Of Contacts

60

Mil Conformance

NO

Din Conformance

NO

Terminal

Solder

Housing Color

Black

Uzunluk

21.27mm

Parça Durumu

Active

Pozisyon Sayısı

60

Pcb Contact Pattern

RECTANGULAR

Fabrika Tedarik Süresi

4 Weeks

Orientation

Straight

Pcb Contact Row Spacing

5.715 mm

JESD-609 Kodu

e3

Contact Finish Thickness

3.00μin 0.076μm

Additional Feature

E.L.P

Kurşunsuz Kodu

yes

Board Mounting Option

POSITIONING PIN

Seri

BSH

Sıra Sayısı

2

RoHS Durumu

ROHS3 Compliant

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Gender

Receptacle

Contact Materials

Bronze

Connector Type

Socket, Center Strip Contacts

Ambalaj

Tape & Reel (TR)

Depth

7.24mm

Voltage Rated Ac

125V

Max Voltage Rating Ac

125V

Ul Flammability Code

94V-0

Reliability

COMMERCIAL

Stack Height Mating

5mm

Min. Çalışma Sıcaklığı

-55°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj Tipi

Surface Mount

Number Of Conductors

ONE

Akım Değeri

1.25A

Plating Thickness

FLASH inch
