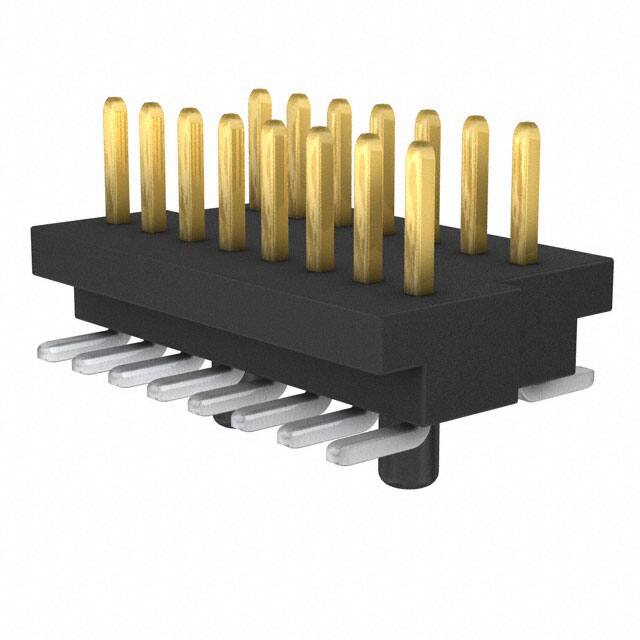

BKT-115-01-F-V-A

Specifications

Seri

BKT

Number Of Positions Loaded

All

Terminal Adımı

1mm

Kurşunsuz Kodu

yes

Insulation Color

Black

Contact Finish Post

Tin

Insulation Materials

Liquid Crystal Polymer (LCP)

Contact Lengthmating

0.065 1.65mm

JESD-609 Kodu

e3

Pcb Contact Pattern

STAGGERED

Insulation Height

0.064 1.63mm

Pitch Mating

0.039 1.00mm

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

3 Weeks

Row Spacing Mating

0.100 (2.54mm)

ECCN Kodu

EAR99

Shrouding

Unshrouded

Mounting Option1

LOCKING

Fastening Type

Push-Pull

Iec Conformance

NO

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Contact Finish Mating

Gold

Contact Shape

Square

Contact Finish Thickness Mating

3.00μin 0.076μm

Connector Type

Header

Number Of Pcb Rows

2

Yayın Yılı

2015

Mating Contact Pitch

0.019 inch

Number Of Conductors

ONE

Stack Height Mating

4.14mm

Filter Feature

NO

Body Depth

0.76 inch

Reliability

COMMERCIAL

Çalışma Sıcaklığı

-55°C~125°C

Current Rating Amps

2.8A per Contact

Din Conformance

NO

Contact Materials

Phosphor Bronze

Montaj Tipi

Surface Mount
