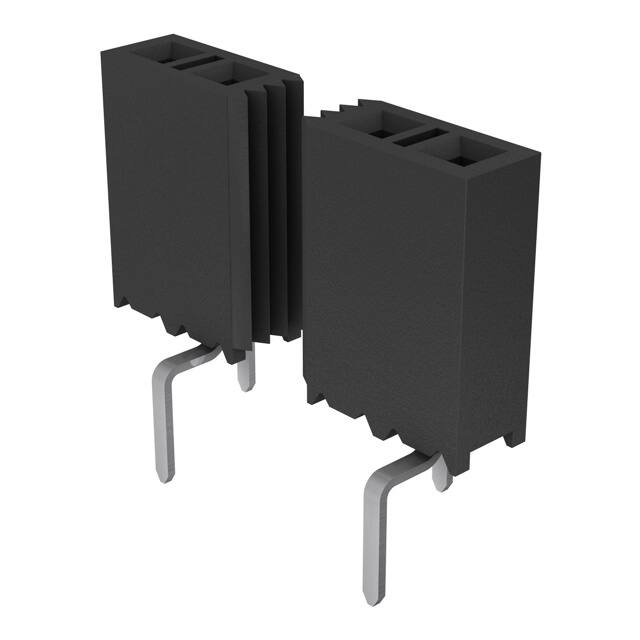

BCS-145-L-S-PE-BE

Specifications

Sıra Sayısı

1

Insulation Color

Black

Material Flammability Rating

UL94 V-0

Contact Plating

Gold

Terminal

Solder

Fabrika Tedarik Süresi

3 Weeks

Çalışma Sıcaklığı

-55°C~125°C

Parça Durumu

Active

Insulation Height

0.290 7.37mm

Nominal Gerilim

475VAC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Post

Tin

Fastening Type

Push-Pull

Insulation Materials

Liquid Crystal Polymer (LCP), Glass Filled

Contact Materials

Phosphor Bronze

Seri

Tiger Claw™ BCS

Pozisyon Sayısı

45

Contact Length Post

0.128 3.25mm

Contact Shape

Square

Pitch Mating

0.100 2.54mm

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Ambalaj

Tube

Gender

Receptacle

Current Rating Amps

4.6A per Contact

Montaj Tipi

Through Hole

Number Of Contacts

45

Connector Type

Receptacle, Pass Through

Number Of Positions Loaded

All

Reach Svhc

No SVHC

Pitch

2.54mm

Montaj

Through Hole

Contact Finish Thickness Mating

10.0μin 0.25μm

Style

Board to Board

Contact Type

Female Socket

Yayın Yılı

2009
