Volume pricing
- 1+ pcs$2.03
- 10+ pcs$1.91
- 100+ pcs$1.81
- 500+ pcs$1.70
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

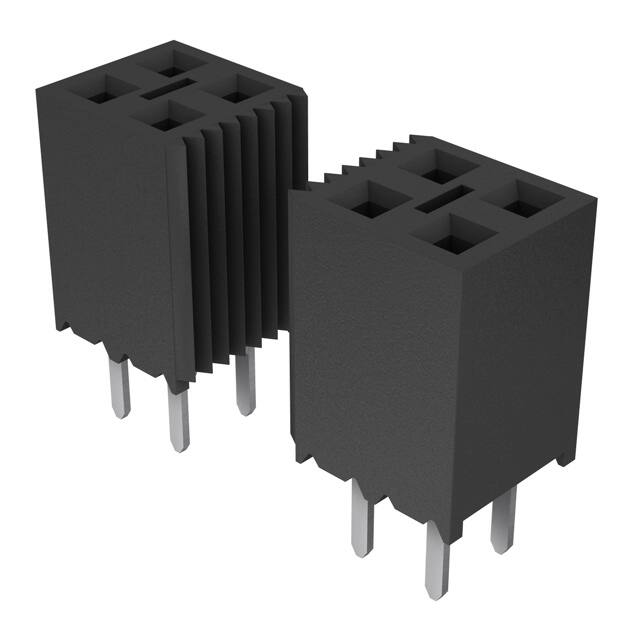

Specifications
- Din Conformance
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Insulation Height
- 0.290 7.37mm
- Nominal Gerilim
- 475VAC
- Material Flammability Rating
- UL94 V-0
- Row Spacing Mating
- 0.100 (2.54mm)
- Mil Conformance
- NO
- Sıra Sayısı
- 2
- Mixed Contacts
- NO
- Kurşunsuz Kodu
- yes
- Insulation Color
- Black
- Terminal
- Solder
- HTS Kodu
- 8536.69.40.40
- Parça Durumu
- Active
- Çalışma Sıcaklığı
- -55°C~125°C
- Fabrika Tedarik Süresi
- 3 Weeks
- Ul Flammability Code
- 94V-0
- Pozisyon Sayısı
- 16
- Additional Feature
- TOP ENTRY
- Contact Finish Post
- Tin
- Fastening Type
- Push-Pull
- Insulation Materials
- Liquid Crystal Polymer (LCP), Glass Filled
- Contact Materials
- Phosphor Bronze
- Seri
- Tiger Claw™ BCS
- Radyasyon Dayanımı
- No
- Connector Type
- Receptacle
- Option
- GENERAL PURPOSE
- Montaj Tipi
- Through Hole
- Filter Feature
- NO
- Number Of Positions Loaded
- All
- Pitch Mating
- 0.100 2.54mm
- Iec Conformance
- NO
- Contact Length Post
- 0.122 3.10mm
- Contact Shape
- Square
- Current Rating Amps
- 4.6A per Contact
- Contact Finish Mating
- Gold
- RoHS Durumu
- ROHS3 Compliant
- Gender
- Female
- Ambalaj
- Tube
- Contact Finish Thickness Mating
- 3.00μin 0.076μm
