Volume pricing
- 1+ pcs$2.72
- 10+ pcs$2.56
- 100+ pcs$2.42
- 500+ pcs$2.28
Shipping
Same-day dispatch from stock
Genuine parts
Verified sourcing
RoHS
Compliant
Support
Technical team support

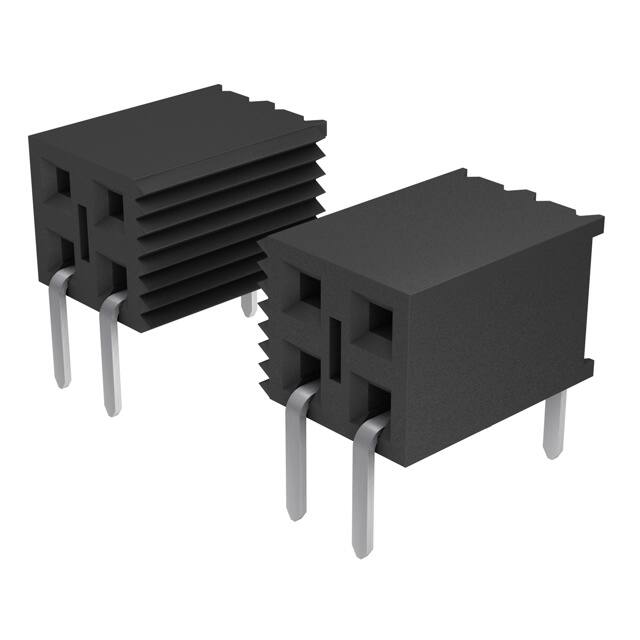

Specifications
- Seri
- Tiger Claw™ BCS
- Insulation Resistance
- 5000000000Ohm
- Contact Materials
- Phosphor Bronze
- Number Of Pcb Rows
- 2
- Insulation Materials
- Liquid Crystal Polymer (LCP), Glass Filled
- Fastening Type
- Push-Pull
- Contact Finish Post
- Tin
- Additional Feature
- 3RD PIN POLARIZED
- Durability
- 500 Cycles
- Pozisyon Sayısı
- 10
- Pcb Contact Pattern
- RECTANGULAR
- Fabrika Tedarik Süresi
- 3 Weeks
- Dielectric Withstanding Voltage
- 375VAC V
- Çalışma Sıcaklığı
- -55°C~125°C
- Pcb Contact Row Spacing
- 7.874 mm
- Parça Durumu
- Active
- Terminal
- Solder
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Black
- Kurşunsuz Kodu
- yes
- Sıra Sayısı
- 2
- Row Spacing Mating
- 0.100 (2.54mm)
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Mating Contact Pitch
- 0.1 inch
- Nominal Gerilim
- 475VAC
- Insulation Height
- 0.210 5.33mm
- Orientation
- Horizontal
- Number Of Conductors
- ONE
- Reliability
- COMMERCIAL
- Yayın Yılı
- 2015
- JESD-609 Kodu
- e3
- Contact Type
- Female Socket
- Style
- Board to Board
- Contact Finish Thickness Mating
- 10.0μin 0.25μm
- Reference Standard
- UL, CSA
- Current Rating Amps
- 4.6A per Contact
- Ambalaj
- Tube
- Contact Finish Mating
- Gold
- RoHS Durumu
- ROHS3 Compliant
- Pitch Mating
- 0.100 2.54mm
