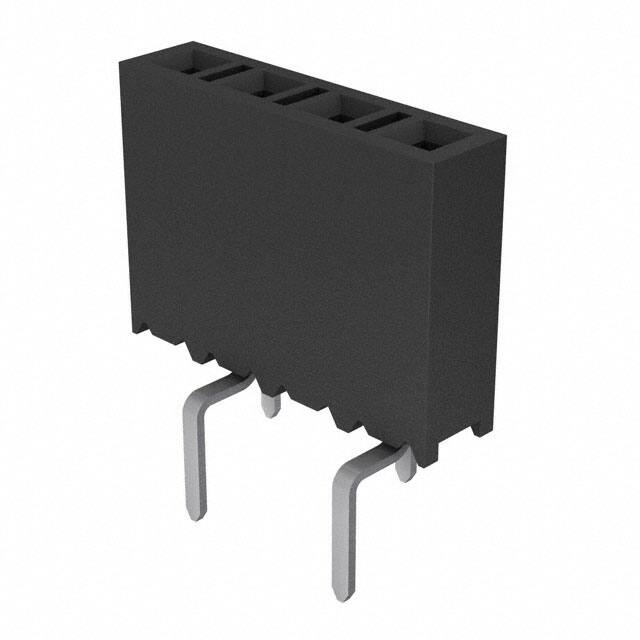

BCS-104-L-S-PE-BE

Specifications

Radyasyon Dayanımı

No

Option

GENERAL PURPOSE

Montaj Tipi

Through Hole

Contact Resistance

10mOhm

Current Rating Amps

4.6A per Contact

Ambalaj

Tube

Housing Material

Polymer

Contact Length Post

0.128 3.25mm

Contact Type

Female Socket

Max Current Rating

5.9A

Yayın Yılı

2009

Reach Svhc

No SVHC

Reliability

COMMERCIAL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Uzunluk

10.16mm

Number Of Conductors

ONE

Terminal

Solder

Fabrika Tedarik Süresi

3 Weeks

Material Flammability Rating

UL94 V-0

Mil Conformance

NO

Mixed Contacts

NO

Durability

500 Cycles

Contact Materials

Phosphor Bronze

Fastening Type

Push-Pull

Number Of Pcb Rows

2

Filter Feature

NO

Number Of Positions Loaded

All

Connector Type

Receptacle, Pass Through

RoHS Durumu

ROHS3 Compliant

Contact Finish Mating

Gold

Gender

Receptacle

Pitch Mating

0.100 2.54mm

Iec Conformance

NO

Contact Shape

Square

JESD-609 Kodu

e3

Style

Board to Board

Contact Finish Thickness Mating

10.0μin 0.25μm

Reference Standard

UL, CSA

Insulation Height

0.290 7.37mm
