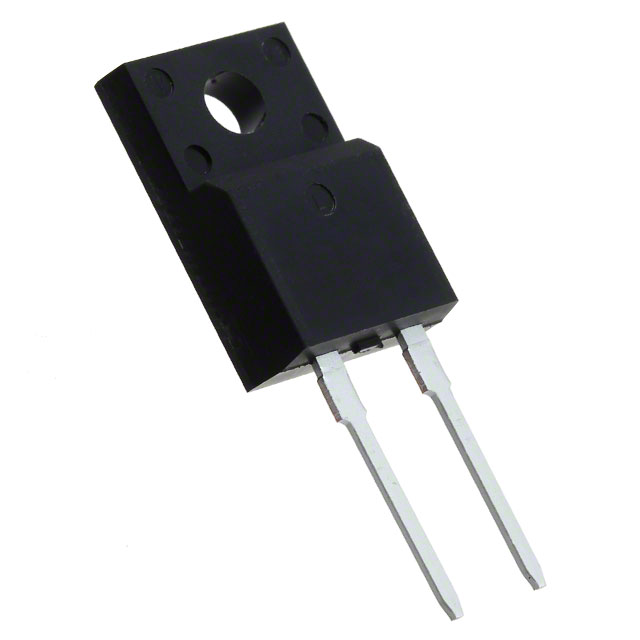

SCS212AMC

Specifications

Max Forward Surge Current Ifsm

170A

Min. Çalışma Sıcaklığı

-55°C

Number Of Phases

1

Kılıf / Paket

TO-220-2 Full Pack

Max Power Dissipation

37W

Terminal Sayısı

2

Kurşunsuz

Lead Free

Reverse Recovery Time

0ns

Max Reverse Voltage Dc

650V

Element Configuration

Single

Parça Durumu

Active

Number Of Elements

1

Applications

GENERAL PURPOSE

Fabrika Tedarik Süresi

12 Weeks

ECCN Kodu

EAR99

Diode Type

Silicon Carbide Schottky

Maks. Çalışma Sıcaklığı

175°C

Temel Parça No

SCS212

Capacitance Vr F

438pF @ 1V 1MHz

Ambalaj

Tube

Montaj Tipi

Through Hole

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Yayın Yılı

2000

Forward Current

12A

Current Reverse Leakage Vr

240μA @ 600V

RoHS Durumu

ROHS3 Compliant

Reach Svhc

No SVHC

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Voltage Forward Vf Max If

1.55V @ 12A

Case Connection

ISOLATED

Peak Reverse Current

240μA

Speed

No Recovery Time > 500mA (Io)

Average Rectified Current

12A

Montaj

Through Hole

Max Repetitive Reverse Voltage Vrrm

650V

HTS Kodu

8541.10.00.80

Operating Temperature Junction

175°C Max

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pin Sayısı

2

Forward Voltage

1.55V
