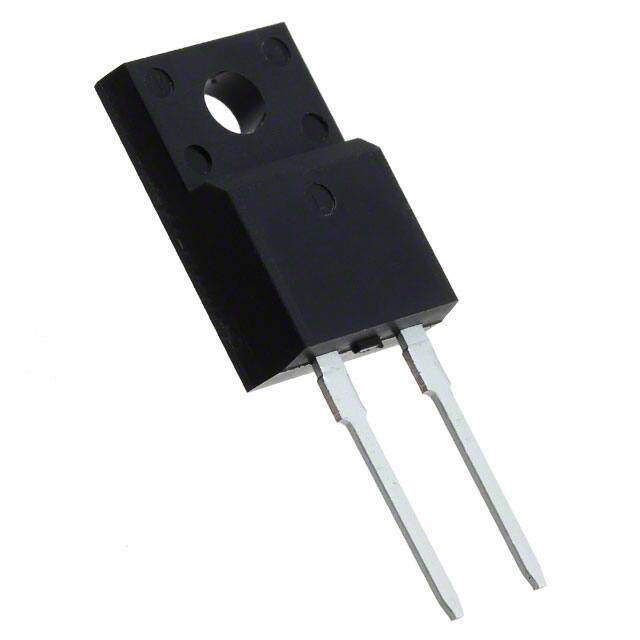

SCS210AMC

Specifications

Kılıf / Paket

TO-220-2

Number Of Outputs

1

Number Of Phases

1

Min. Çalışma Sıcaklığı

-35°C

Max Forward Surge Current Ifsm

40A

Kurşunsuz

Lead Free

Reverse Recovery Time

0ns

Terminal Sayısı

2

Max Power Dissipation

34W

Element Configuration

Single

Fabrika Tedarik Süresi

12 Weeks

Applications

GENERAL PURPOSE

Number Of Elements

1

Output Configuration

High Side

Max Output Current

2A

Parça Durumu

Active

Temel Parça No

SCS210

Current Average Rectified Io

10A DC

Maks. Çalışma Sıcaklığı

175°C

Diode Type

Silicon Carbide Schottky

ECCN Kodu

EAR99

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Reach Svhc

No SVHC

RoHS Durumu

ROHS3 Compliant

Current Reverse Leakage Vr

200μA @ 600V

Fault Protection

Over Temperature, Reverse Current

Forward Current

10A

Yayın Yılı

2000

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Montaj Tipi

Through Hole

Peak Nonrepetitive Surge Current

150A

Capacitance Vr F

365pF @ 1V 1MHz

Ambalaj

Tube

Max Repetitive Reverse Voltage Vrrm

650V

Montaj

Through Hole

Interface

On/Off

Average Rectified Current

10A

Speed

No Recovery Time > 500mA (Io)

Peak Reverse Current

2μA

Voltage Forward Vf Max If

1.55V @ 10A
