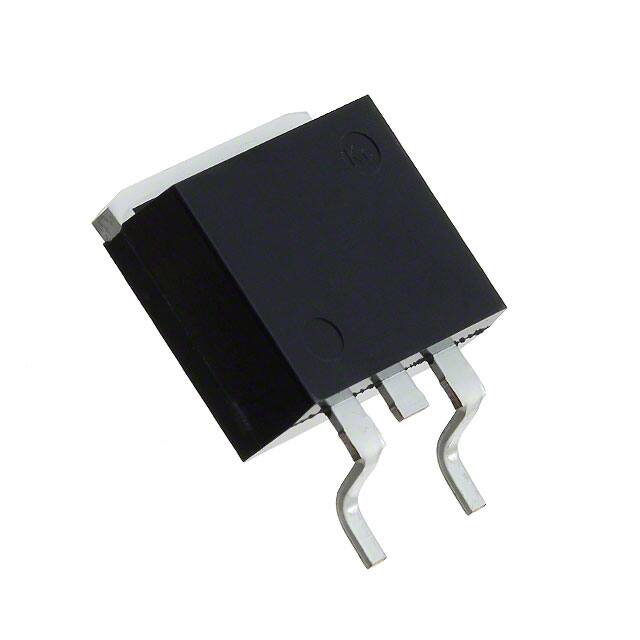

SCS210AJTLL

Specifications

Operating Temperature Junction

175°C Max

HTS Kodu

8541.10.00.80

Forward Voltage

1.35V

JESD-609 Kodu

e2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pin Sayısı

3

Terminal Formu

GULL WING

Peak Reverse Current

200μA

Voltage Forward Vf Max If

1.55V @ 10A

Average Rectified Current

10A

Speed

No Recovery Time > 500mA (Io)

Montaj

Surface Mount

Max Repetitive Reverse Voltage Vrrm

650V

Capacitance Vr F

365pF @ 1V 1MHz

Ambalaj

Cut Tape (CT)

Yayın Yılı

2011

Forward Current

10A

Montaj Tipi

Surface Mount

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Current Reverse Leakage Vr

200μA @ 600V

Reach Svhc

No SVHC

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

RoHS Durumu

ROHS3 Compliant

ECCN Kodu

EAR99

Diode Type

Silicon Carbide Schottky

Natural Thermal Resistance

1.8 °C/W

Current Average Rectified Io

10A DC

Maks. Çalışma Sıcaklığı

175°C

Temel Parça No

SCS210

Parça Durumu

Active

Number Of Elements

1

Jesd30 Code

R-PSSO-G2

Fabrika Tedarik Süresi

20 Weeks

Applications

GENERAL PURPOSE

REACH Uyumluluk Kodu

not_compliant

Element Configuration

Common Cathode

Max Power Dissipation

83W

Terminal Kaplaması

Tin/Copper (Sn/Cu)

Terminal Sayısı

2

Max Reverse Voltage Dc

600V
