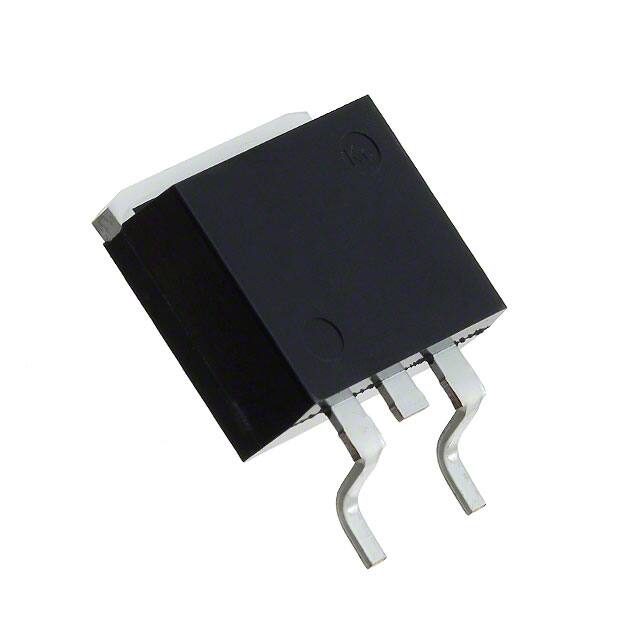

SCS208AJTLL

Specifications

REACH Uyumluluk Kodu

not_compliant

Element Configuration

Common Cathode

Parça Durumu

Not For New Designs

Fabrika Tedarik Süresi

18 Weeks

Jesd30 Code

R-PSSO-G2

Output Currentmax

8A

Applications

GENERAL PURPOSE

Number Of Elements

1

Min. Çalışma Sıcaklığı

-55°C

Max Forward Surge Current Ifsm

31A

Kılıf / Paket

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Number Of Phases

1

Terminal Sayısı

2

Max Power Dissipation

62W

Terminal Kaplaması

Tin/Copper (Sn/Cu)

Terminal Pozisyonu

SINGLE

Max Reverse Voltage Dc

600V

Kurşunsuz

Lead Free

Reverse Recovery Time

0 s

Speed

No Recovery Time > 500mA (Io)

Average Rectified Current

8A

Terminal Formu

GULL WING

Peak Reverse Current

160μA

Voltage Forward Vf Max If

1.55V @ 8A

Max Repetitive Reverse Voltage Vrrm

650V

Montaj

Surface Mount

Operating Temperature Junction

175°C Max

HTS Kodu

8541.10.00.80

Forward Voltage

1.35V

JESD-609 Kodu

e2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pin Sayısı

3

Diode Type

Silicon Carbide Schottky

Natural Thermal Resistance

2.4 °C/W

ECCN Kodu

EAR99

Temel Parça No

SCS208

Current Average Rectified Io

8A DC

Maks. Çalışma Sıcaklığı

175°C

Forward Current

8A

Yayın Yılı

2011
