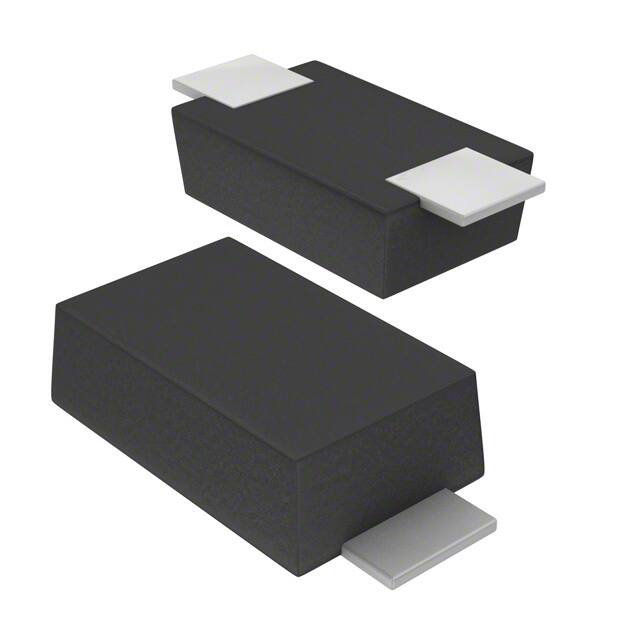

RR255M-400TR

Specifications

Yayın Yılı

2007

Max Reverse Voltage Dc

400V

Current Reverse Leakage Vr

1μA @ 400V

Pin Sayısı

2

Reverse Voltage

400V

Element Configuration

Single

Peak Reverse Current

1μA

Uzunluk

2.6mm

Yükseklik

800μm

RoHS Durumu

ROHS3 Compliant

Max Repetitive Reverse Voltage Vrrm

400V

Number Of Elements

1

HTS Kodu

8541.10.00.80

Ambalaj

Tape & Reel (TR)

Parça Durumu

Not For New Designs

Forward Current

700mA

Kılıf / Paket

SOD-123

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Forward Vf Max If

980mV @ 700mA

Reach Svhc

No SVHC

Operating Temperature Junction

150°C Max

Forward Voltage

980mV

Diode Type

Standard

Genişlik

1.6mm

Speed

Standard Recovery >500ns, > 200mA (Io)

Average Rectified Current

700mA

ECCN Kodu

EAR99

Montaj Tipi

Surface Mount

Max Forward Surge Current Ifsm

150A

Montaj

Surface Mount

Radyasyon Dayanımı

No

Maks. Çalışma Sıcaklığı

150°C

Output Currentmax

0.7A

Temel Parça No

RR255M-400
