RR1VWM4STR

Specifications

Fabrika Tedarik Süresi

8 Weeks

Jesd30 Code

R-PDSO-F2

Terminal Pozisyonu

DUAL

Terminal Sayısı

2

Configuration

SINGLE

REACH Uyumluluk Kodu

compliant

Current Reverse Leakage Vr

10μA @ 400V

Operating Temperature Max

175°C

Rep Pk Reverse Voltagemax

400V

Diode Element Material

SILICON

Yüzey Montaj

YES

Current Average Rectified Io

1A

Voltage Dc Reverse Vr Max

400V

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

RoHS Durumu

RoHS Compliant

Speed

Standard Recovery >500ns, > 200mA (Io)

Diode Type

Standard

Operating Temperature Junction

175°C Max

Parça Durumu

Active

Ambalaj

Digi-Reel®

HTS Kodu

8541.10.00.80

Number Of Elements

1

Nem Hassasiyeti (MSL)

1 (Unlimited)

Voltage Forward Vf Max If

1.2V @ 1A

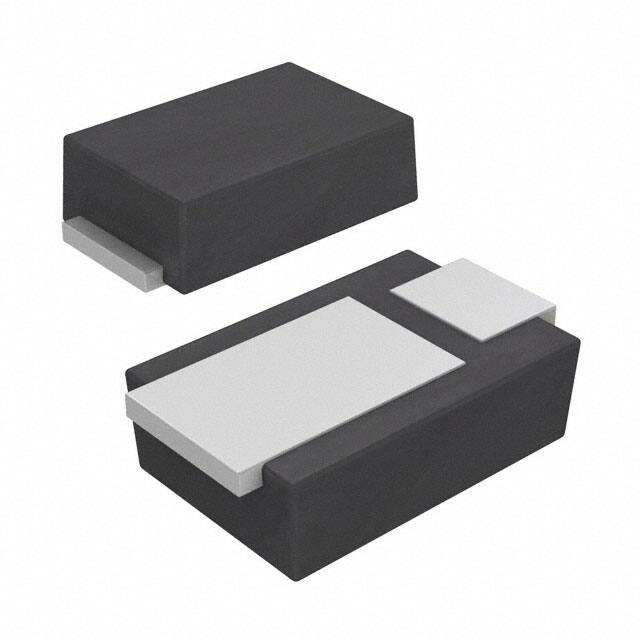

Kılıf / Paket

2-SMD, Flat Lead

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Output Currentmax

1A

Montaj Tipi

Surface Mount

ECCN Kodu

EAR99
