Specifications
- Currentcollector Ic Max
- 40A
- Power Max
- 161W
- Fabrika Tedarik Süresi
- 17 Weeks
- Jesd30 Code
- R-PSIP-T3
- Transistor Element Material
- SILICON
- Test Conditions
- 400V, 20A, 10 Ω, 15V
- Terminal Pozisyonu
- SINGLE
- Terminal Sayısı
- 3
- Configuration
- SINGLE WITH BUILT-IN DIODE
- Polaritychannel Type
- N-CHANNEL
- Yüzey Montaj
- NO
- Igbt Type
- Trench Field Stop
- Td Onoff25c
- 22ns/75ns
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- RoHS Durumu
- ROHS3 Compliant
- Giriş Tipi
- Standard
- Voltage Collector Emitter Breakdown Max
- 650V
- Gate Charge
- 40nC
- Current Collector Pulsed Icm
- 60A
- Ambalaj
- Tube
- Parça Durumu
- Active
- Reverse Recovery Time
- 58ns
- Number Of Elements
- 1
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)

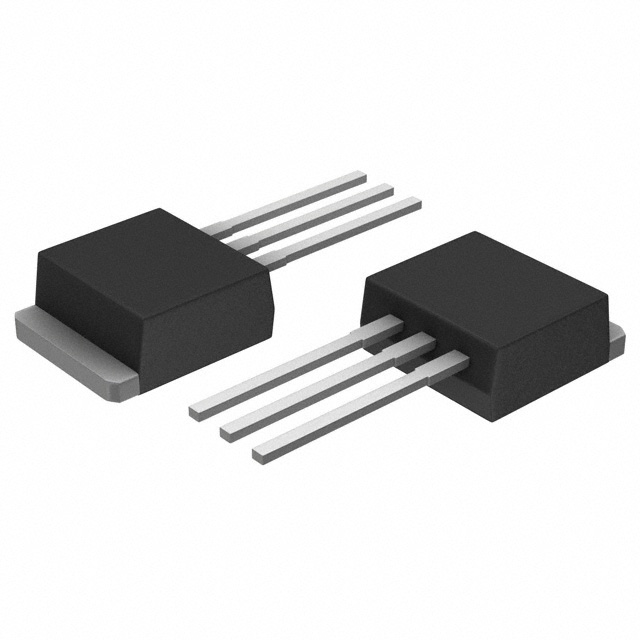

- Kılıf / Paket
- TO-262-3 Long Leads, I2Pak, TO-262AA
- Vceon Max Vge Ic
- 2.1V @ 15V, 20A
- Montaj Tipi
- Through Hole
- Transistor Application
- POWER CONTROL
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Çalışma Sıcaklığı
- -40°C~175°C TJ
- Turn Off Timenom Toff
- 204 ns
- Turn On Time
- 51 ns
