Specifications
- Transition Frequency
- 270MHz
- Collectoremitter Breakdown Voltage
- 30V
- Parça Durumu
- Active
- Pin Sayısı
- 5
- Terminal Sayısı
- 5
- Kurşunsuz
- Lead Free
- RoHS Durumu
- ROHS3 Compliant
- Transistor Element Material
- SILICON
- Frequency Transition
- 300MHz 270MHz
- ECCN Kodu
- EAR99
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Transistor Application
- SWITCHING
- Jesd30 Code
- R-PDSO-G5
- Montaj
- Surface Mount
- Terminal Formu
- GULL WING
- Fabrika Tedarik Süresi
- 20 Weeks
- Tepe Reflow Süresi (maks. sn)
- NOT SPECIFIED
- Number Of Elements
- 2
- Montaj Tipi
- Surface Mount
- REACH Uyumluluk Kodu
- not_compliant
- Max Power Dissipation
- 1.25W
- Configuration
- COMMON EMITTER, 2 ELEMENTS
- Terminal Pozisyonu
- DUAL
- Ambalaj
- Cut Tape (CT)
- Çalışma Sıcaklığı
- 150°C TJ
- Yayın Yılı
- 2011
- Polaritychannel Type
- NPN AND PNP
- Max Collector Current
- 3A
- Current Collector Cutoff Max
- 1μA ICBO

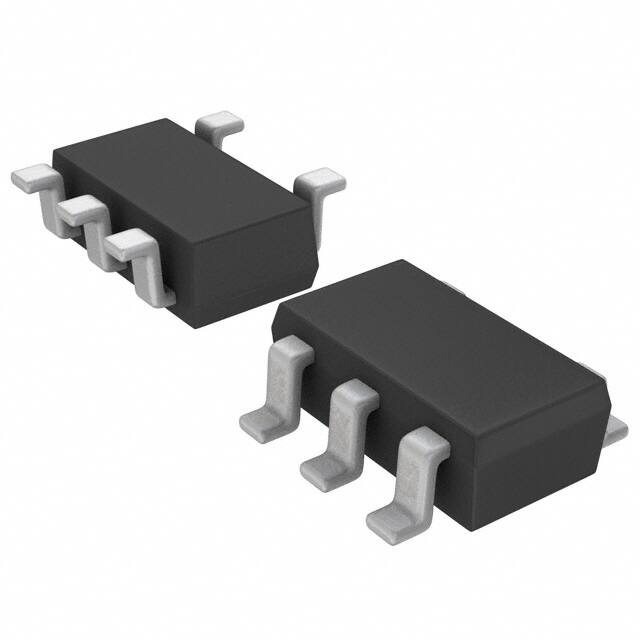

- Kılıf / Paket
- SOT-23-5 Thin, TSOT-23-5
- Collector Emitter Voltage Vceo
- 400mV
- Max Breakdown Voltage
- 30V
- Tepe Reflow Sıcaklığı (°C)
- NOT SPECIFIED
- Transistor Type
- NPN, PNP (Emitter Coupled)
- Power Max
- 1.25W
- Dc Current Gain Hfe Min Ic Vce
- 200 @ 500mA 2V
- Vce Saturation Max Ib Ic
- 400mV @ 50mA, 1A
