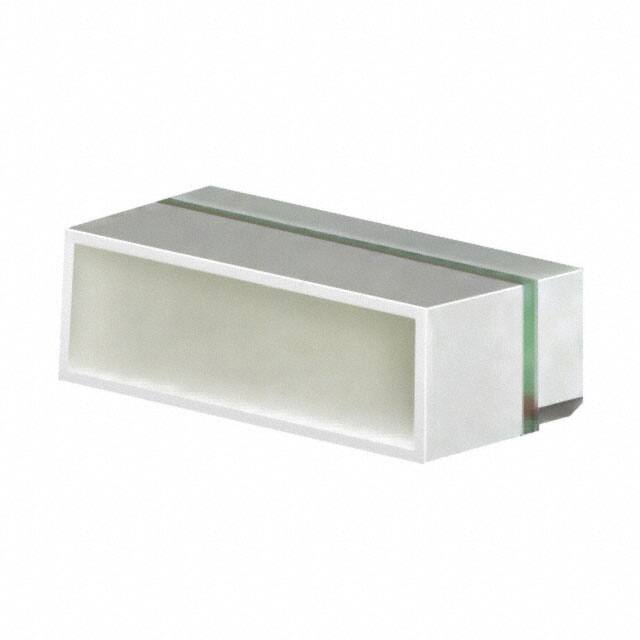

MSL0601RGBU1

Specifications

Montaj Tipi

Surface Mount

Packing Method

TR, 7 INCH

Seri

MSL

Forward Currentmax

0.03A

RoHS Durumu

ROHS3 Compliant

Kılıf / Paket

2-SMD, No Lead

Height Max

1.10mm

Operating Temperature Min

-40°C

Nem Hassasiyeti (MSL)

4 (72 Hours)

Boyut / Ölçü

2.90mm Lx1.35mm W

Wavelengthdominant

624nm Red 527nm Green 470nm Blue

Additional Feature

SIDE VIEW

Current Test

20mA Red 20mA Green 20mA Blue

Configuration

Common Anode

Lens Size

2.90mmx1.35mm

Renk

Red, Green, Blue (RGB)

Millicandela Rating

700mcd Red, 1250mcd Green, 360mcd Blue

Shape

RECTANGULAR

Fonksiyon Sayısı

1

Voltage Forward Vf Typ

2.1V Red 3.3V Green 3.2V Blue

Lens Color

White

Ambalaj

Tape & Reel (TR)

Parça Durumu

Active

Terminal Sayısı

4

Lens Style

Rectangle with Flat Top

Operating Temperature Max

85°C

Yüzey Montaj

YES

Optoelectronic Device Type

TRIPLE COLOR LED

Fabrika Tedarik Süresi

10 Weeks

Luminous Intensity

700.0/1250.0/360.0 mcd

Overall Height

1mm
